The kerosene container was possibly used to fill slush lamps, hand lamps and train engine lights.Rusted, grey metal kerosene container with looped handle attached to the sides. A cork under the cap which has a metal chain attached to it, to secure the cap onto the container. Possibly used to fill slush lamps, hand lamps and train engine lights.metal, locomotive, railway, engine equipment, tin, kerosene

Mr Blaickie an Uncle of Mr S.W. McDonald, Local ResidentBlack and white photograph, mounted on grey cardboard, of Blackies Traction Engine and Threshing Machines - 16 Men in photo - child sitting on wheel- Bags of chaff in Foreground - Tree covered hill in background.On back of photo: "Blaikies Traction Engine & Thresher. Taken Porepunkah 1900 early. Blaikies were Uncles of Mr [illeg] McDonald. A Mr Blackies on engine"agriculture, threshing, blackie, traction engine, farm equipment

Report - typed four pages - two copies - brass clipped together - titled "Percentage of full life worn off the various type of large sheeves pulleys at the power houses and termini and the various types of pulleys and their spindles in use along the track", listing the details for each engine or power house in the Northern Area - Fitzroy, Nicholson St, Richmond, Brunswick, North Melbourne, North Carlton and Johnston St engine houses. Dated 10/10/1917trams, tramways, cable trams, track, engine houses, cables, equipment

This photograph was printed from a glass negative held in the Society's picture collection. The original glass negative is part of a set donated to the Society by Ian McKenzie, a professional photographer in Kew. Stationary engine, After 1920. A print from a glass negative that has been reused to document an early stationary engine. The equipment, designed to be bolted to a larger object such as a floor, is comprised of wheels and shafts. The content of the original photograph is too unclear to be identified. stationery engine, farming technology, farming equipment, glass negatives

Slide. Winding engine at the New Moon Gold Mine. Image shows interior of engine room with winding equipment.No 37 printed on bottom of slide.mine, gold, moon machinery., bendigo mines-jack hattam collection.

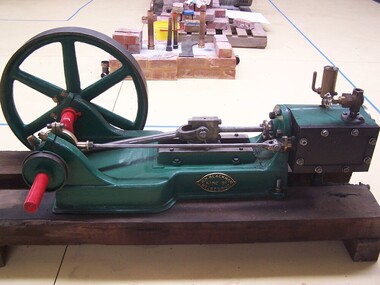

Engine (power producing equipment) A single cylinder Blackham stationary engine. This engine required steam from a separate boiler to operate. Maker : W.H Blackham King Street, Melbourne, Victoria c. 1900 Historic - Industrial - Single cylinder Stationary engine - W. H. Blackham - Kings St. Melbourne, Victoria, Australia A single cylinder Blackham stationary engine. - Made from Iron, wrought Iron & brassW.H Blackham King st. Melbournepuffing billy, blackham, single cylinder stationary engine

Two red covered ( one with cloth tape on the spine and edges) auction catalogues for a sale at the Big Bell Gold Mine, Big Bell, Western Australia, held on the 22nd to 27th August 1955 and 29th to 31st August and 1st to 3rd September, 1955. Sale consisted of Mining Machinery, Engines, Electrical Equipment, Pumps, Stores, Housing, Rolling Stock and Costly Equipment by Order of Big Bell Mines Ltd. J. H. Curnow & Son Pty. Ltd. Were the auctioneers. One catalogue has Mr. Curnow written on the front.business, auctioneers, j h curnow & son pty ltd, ian dyett collection - auction catalogue - big bell gold mine, big bell mines ltd, j h curnow & son pty ltd, prahran telegraph printing co pty ltd

Report - 7 quarto typed sheets - untitled, but gives a detailed description of the design basis and construction of the SW6 class tram. Dated May 1939. Details the design after Bell's overseas trip the previous year. Details dimensions, seating, ventilation, seating, doors, structure, construct, timber, materials, door engines, cab equipment, PA system, interior appearances, flooring, colours, lighting, conductor's bell / signals, trucks, bolster, wheels, brake shoes, braking, motors, acceleration, performance, controllers, contactors, compressor. Gives a detailed list of the specifications.Has a note in pencil about a typographical error on the bottom of the sheet.trams, tramways, sw6 class, specification, tramcars, tram controllers, tram equipment, tramcar design

This engine turned belts to power battery operation. Used from C 1910-1920, some are parts missing. 'Tangye' had offices in Sydney.The first gas engine, a 1 nominal horsepower two-cycle type, was sold in 1881, and in 1890 the firm commenced manufacture of the four-cycle gas engine. Incorporated as a limited company from 1881, in 1894 they produced their first hot bulb engine.[2] Richard Tangye was knighted in 1894. After the deaths of Richard (1906) and George (1920), with the family owning the majority of shares, their sons entered the business.[2] In 1919, the company started production of large-scale industrial diesel engines, pumps and hydraulic equipment. Engine production was stopped after World War Two. A Tangye 35HP suction gas engine. (incomplete). Large green cast iron engine sitting on large white concrete block, with inscriptions on both sides. The green engine has 3 outlet/inlet pipes and joins onto one belt wheel; belt wheel joins onto another belt wheel which is sitting on another white concrete block."Tangye/patents/birmingham"

White auction catalogue for a sale at the Commonwealth Disposals Commission Depot, Maribyrnong on 24 June, 1946. Sale comprised of power graders, stone crushing plant, road making equipment and engines. J. H. Curnow & Son Pty. Ltd. Were the auctioneers.business, auctioneers, j h curnow & son pty ltd, ian dyett collection - auction catalogue - commonwealth disposals commission, j h curnow & son pty ltd, j l jamieson, w g wedd, the prahran telegraph printing co

The Statesman WB range of long-wheelbase luxury sedans, developed by General Motors-Holden’s in parallel with the Holden WB series, was released in May 1980. Like their Statesman HZ predecessors, the two models in the Statesman WB range, the de Ville and the Caprice, were marketed as "Statesman" rather than as "Holden". A 3.3-litre inline six cylinder engine was standard equipment and a 4.2-litre V8 was offered as an optionThe WB series was discontinued in late 1984. Production of the Holden WB and related Statesman WB models totalled 60,231 vehicles Blue 4 door sedan In fair condition, Blue interiorDeVille badge on Grille, De Ville badges on both front mudguards on boot statesman badge on LHS of Boot lid and De Ville on centre of boot vehicle, wb statesman, car

Shows the interior of the cable tram engine house that was located on the corner of Gertrude Street and Nicholson Street in Fitzroy. Shows the steam pipes to two of the engine cylinders, the control equipment, and large cable winding wheels. An MMTB poster titled Melbourne Tramways Past and President (see Reg Item 6368), captions the photo as "Nicholson Sreet Power House - the last to operate" The facility ceased operation in 1940 though the equipment was retained until 1941. Yields information about the interior of the Gertrude Street or Nicholson Street cable tram engine houseBlack and white photograph - interior of the Engine house on the corner of Gertrude and Nicholson Streets prior to closure in 1940.tramways, trams, coburg, cable cars, engine house, nicholson street, gertrude street, steam engines

Cooper S.E. Ball Bearing Grinder made and guaranteed by Sunbeam Corporation Limited. Grinders like this example have been made the same since the early 1900s, with this grinder thought to have been produced in the 1960s. It is belt driven, with the other end of the belt being attached to an engine; the same engine that would have powered the overhead shearing equipment in shearing sheds. It was common for shearing teams to bring their own equipment, especially pre-1960 as most shearing sheds were not connected to power, and shearers preferred to work with their own equipment. The engines that powered the shears and grinder were typically fuelled with kerosene or petrol. The large circular disks are attached to the bolt that protrudes from the grinder and fastened tightly with a nut. An example of seeing a similar grinder in action can be found on the following link - https://www.youtube.com/watch?v=O7eimI_Gm9o. Inventor Frederick Wolseley made the world's first commercially successful power-shearing system in Australia in 1888. US company Cooper, which had been founded in 1843 as a maker of sheep dip, began selling Wolseley equipment in the USA in 1895. The Chicago Flexible Shaft Company successfully entered the power-shearing market a few years later and entered a joint venture with Cooper. It set up a branch in Sydney and sold shearing sets, and engines to power them, into the Australian market. In 1921 the US parent company, realising it needed to make products whose sales were not as seasonal as those of shearing equipment, made its first household appliances and branded them Sunbeam. In 1933, changes in exchange rates and taxes led the company to manufacture engines and shearing equipment in Australia via subsidiary Cooper Engineering, which changed its name to Sunbeam in 1946. Although most Australians know of this company as a major manufacturer of household appliances, its rural division flourished and retained the Sunbeam name for shearing equipment even after it was taken over by New Zealand company Tru-Test in 2001. The grinder is formed from a central arch shaped block of green painted metal. Much of this paint has been lost to age, leaving the grinder in a ‘farm used’ condition with much surface oxidation present. On the front of the arch is a specification plate, reading “Cooper S.E. ball bearing grinder. Made and guaranteed by Sunbeam”. At the foot of the arch, three bolt holes are found for securing the grinder to the base of a solid wooden surface. Two of the bolt holes are found on the front of the grinder, with another found on the rear. From the central arch, a bolt protrudes to the right of the grinder. This large bolt is for securing a grinding plate to the grinder. Above the central arch is a pendulum which holds the comb / cutter that is being sharpened. From the pendulum, a large arm extends down (not pictured) to meet and strike the plate spinning at a rapid speed. On the left-hand side of the central arch of the grinder, a wheel is found which a belt is attached to for power. This belt is then attached to a separate engine, spinning the wheel and hence powering the grinder. The wheel is partially covered with a section of protective bent tube, designed to provide protection from the rapidly spinning wheel. Below this wheel is the belt shifter. It is designed to move the protective bent tube from one side of the grinder to the other, to accommodate the grinder in the setup of different shearing sheds. The two separate grinding plates are identical. They have a slight slope for sharpening the comb and cutters in the correct method, with a slight bias towards the base, or “tooth”, of the equipment. The disks have a large central bolt for attaching to the grinder. They have tags on the horizontal axis of the grinding plates, for securing the plates in transportation, and to help with initial alignment when setting up the grinder. The reverse of these grinding plates has the same green painted metal finish found on the grinder. This paint is also in a ‘farm used’ condition, with surface oxidation present. The grinder would be provided from the factory with a comb holder, shifter for securing the grinding plates, emery cloth and emery glue. The emery cloth is what does the actual grinding and is applied to the grinding disks, replacing once well worn. These items can be seen in the final images in the multimedia section, showcasing advertising for this grinder. Plate. Inscribed. “Cooper / S.E. BALL BEARING GRINDER / MADE AND GUARANTEED BY / Sunbeam / CORPORATION LIMITED / SYDNEY MELBOURNE / ADELAIDE BRISBANE ”sheep shearing, shearing equipment, sunbeam, grinder

The ship’s communication system that was used from the late 19th century to early-to-mid-20th-century is called an Engine Order Telegraph (E.O.T.) or ship’s telegraph. The system has two parts, the Bridge Section and the Engine Room Section. The Bridge Section is usually mounted on top of a pedestal, and the Engine Room Section is often attached to a vertical surface. The standard commands printed or stamped onto the dial are the directions of AHEAD and ASTERN, and the speeds of STOP, SLOW, HALF, and FULL. The ship’s pilot on the Bridge of a vessel sends his Orders for speed and direction to the to the Engine Room with the E.O.T. He moves the lever or levers, depending on the number of engines the ship has, to change the indicator on the Bridge Section’s dial to point in the new direction and speed of travel. This change causes the Orders to be duplicated on the Engine Room Section’s dial and a bell to signal the change at the same time. The engineer then adjusts the ship’s engines and steering equipment to follow the pilot’s Order. The manufacturer, A. Robinson & Co. Ltd of Liverpool, established his business in 1780 and continued until 1968 when the business was purchased by marine products maker Chadburns, established in London in 1870.This Engine Room section is part of a ship's telegraph communication system and represents marine technology used in the late-19th to mid-20th-century. Engine Room Section of a ship’s telegraph or Engine Order Telegraph (E.O.T.). The round brass dial has inscriptions stamped around its edge and centre. Red inlaid glass plates have inscriptions in white paint on them. The inscriptions are nautical terms for direction and speed and include the maker’s details. A rotating pointer is joined to the centre of the dial. The maker is A. Robinson & Co. Ltd of Liverpool. Stamped: “FULL / HALF / SLOW / STOP / FULL / HALF / SLOW / STOP”, “AHEAD / ASTERN” Printed: “FULL / HALF / SLOW / STOP / FULL / HALF / SLOW / STOP” Stamped on the dial: “A. ROBINSON & CO. LTD / MANUFACTURERS / LIVERPOOL”flagstaff hill, warrnambool, maritime museum, maritime village, great ocean road, shipwreck coast, marine technology, marine communications, engine order telegraph, e.o.t., ship’s telegraph, bridge section, engine room section, ship’s engine telegraph section, marine telegraph, a. robinson & co. ltd, liverpool

This Engine Room section of a ship's telegraph system was part of the equipment of the Ports and Harbour ship the SS Rip. The vessel serviced and maintained the lights and buoys at Port Phillip Bay and Queenscliffe. The SS Rip was possibly the former gunboat "Albert". The ship’s communication system that was used from the late 19th century to early-to-mid-20th-century is called an Engine Order Telegraph (E.O.T.) or ship’s telegraph. The system has two parts, the Bridge Section and the Engine Room Section. The Bridge Section is usually mounted on top of a pedestal, and the Engine Room Section is often attached to a vertical surface. The standard commands printed or stamped onto the dial are the directions of AHEAD and ASTERN, and the speeds of STOP, FULL, EASY, STD. BY. and FIN. ENG. The ship’s pilot on the Bridge of a vessel sends his Orders for speed and direction to the to the Engine Room with the E.O.T. He moves the lever or levers, depending on the number of engines the ship has, to change the indicator on the Bridge Section’s dial to point in the new direction and speed of travel. This change causes the Orders to be duplicated on the Engine Room Section’s dial and a bell to signal the change simultaneously. The engineer then adjusts the ship’s engines and steering equipment to follow the pilot’s Order. The manufacturer, Mulne Bros., was a copper and brass works at 166 Sussex Street Sydney, in December 1892, and previously from 1870 at 128 to 130 Sussex Street. The company made and sold a wide range of equipment including machinery and gauges for the Railways.The Engine Room section is significant for being part of the communications system on the ship SS Rip, owned by Melbourne's Ports & Harbours department and used to service and maintain the navigation signals of Port Phillip Bay and at Queenscliffe in the mid-20th century. The dial is an example of marine equipment made in Australia and used for the safety of Victorian vessels. It is also significant for being made by an early Australian manufacturer, Milne Brothers of Sydney.Engine Room Section of a ship’s telegraph or Engine Order Telegraph (E.O.T.). The round metal dial has inscriptions stamped around the edges. The inscriptions are nautical terms for direction and speed and include the maker’s details. The dial was made by Milne Bros. of Sydney. It was part of the equipment on the "SS Rip" in Victoria.Black paint around dial: "MILNE BROS. / MAKERS / SYDNEY" "FULL EASY STD. BY " "FIN ENG. EASY FULL" ""ASTERN" "STOP" "AHEAD"flagstaff hill, warrnambool, maritime museum, maritime village, great ocean road, shipwreck coast, marine technology, marine communications, engine order telegraph, e.o.t., ship’s telegraph, bridge section, engine room section, ship’s engine telegraph section, marine telegraph, milne bros., milne brothers, sydney, copper and brass works, ports & harbours ship, ss rip, gunboat albert, service ship, maintenance ship

Set of three Black and White photograph, mounted onto grey impressed and lined, brown rear, card of equipment at the Essendon or Ascot Vale Power House operated by The North Melbourne and Electric Tramways and Lighting Company. Photo by "Darge" Photos, 175 Collins St Melbourne, printed on the bottom right hand corner. .1 - Switchboard and wiring at the one end of the power station with attendant. .2 - View showing the engines and steam control equipment. (images i2 and i3 - close up of builders plate) .3 - View showing the generator ends of the engines (images i4 and i5 - close up of the buildings plate) - Browett and Lindley of Manchester, main engines. Reference photo on page 12 of "A short history of The North Melbourne Electric Tramways and Lighting Company Limited" - K.S. Kings, edited by Dean Filgate Dec. 2016.trams, tramways, power station, equipment, essendon, nmetl

''COSTERFIELD: A HISTORY FROM 1853 TO 1978'' - PAPER BY JOHN BRADLEY A Paper for History Dip II (where?). 22 handwritten pages with additional pages of photographs. Includes mining history of North Costerfield and South Costerfield Mines; information on Coster family and Field family; coach services to Costerfield; Post Office services; schools in Costerfield; churches at Costerfield; (Indian) hawkers; shops and hotels; boarding houses; blacksmiths; Police in Costerfield; Scheelite mine; Sport; Costerfield Band; Public halls; Cemetery; farmers of the area. Page of acknowledgements; Bibliography; Reproduction (poor) of photographs of early photograph of Costerfield (1890); miners at 'Big Antimony Mine , 1912'; Bombay Mine; various buildings; football club membership 'tickets'; auction advertisement - mining plant, 1902; sale of mining equipment 1941; engine room at the Costerfield Mine 1939; race between motorbike and horse and jinker; school photo - various years 1910-1914; football teams; sketches of public hall and Brown's Mine Tavern (and Billiard Rooms).John Bradleygold, goldfields, costerfield, costerfield mines, coster family, field family, post office, cemetery, football, boarding houses, blacksmith, hotels and shops. brown's mine tavern, big antimony mine.

With more and more woolsheds being connected to power lines, the need for electric shearing gear markedly increased from the 1960s onwards. The greater economy made electric gear an attractive proposition to many graziers. Requiring only an electric shearing motor, for small and medium scale operations, electric shearing motors were a more economical way of shearing a wool clip. The other option for graziers was Overhead shearing gear, which also required an Engine to provide shared power to a row of shearing stations. Still working, this Sunbeam Electric Shearing Motor – Heavy Duty Model, features a slow speed motor totally enclosed for protection against dust and insects. The full bearing down tube is easily removed and stored to be out of the way when not in use (not pictured). Providing 0.5 hp, which is twice the power ever needed for shearing sheep, this buffer allows for fluctuations in voltages that can occur in rural districts. Inventor Frederick Wolseley made the world's first commercially successful power-shearing system in Australia in 1888. US company Cooper, which had been founded in 1843 as a maker of sheep dip, began selling Wolseley equipment in the USA in 1895. The Chicago Flexible Shaft Company successfully entered the power-shearing market a few years later and entered into a joint venture with Cooper. It set up a branch in Sydney and sold shearing sets, and engines to power them, into the Australian market. In 1921 the US parent company, realising it needed to make products whose sales were not as seasonal as those of shearing equipment, made its first household appliances and branded them Sunbeam. In 1933, changes in exchange rates and taxes led the company to manufacture engines and shearing equipment in Australia via subsidiary Cooper Engineering, which changed its name to Sunbeam in 1946. Although most Australians know of this company as a major manufacturer of household appliances, its rural division flourished and retained the Sunbeam name for shearing equipment even after it was taken over by New Zealand company Tru-Test in 2001. This 0.5 horsepower vertical brushed motor air-cooled engine was designed to drive a single shearing plant. From the central cylinder which features a yellow “Sunbeam” sticker, a grey 240v power lead can be found on the left-hand side. A blue capacitor is located next to this power lead. Below, two legs extend and meet to form a foot which is fastened to a wall. On the right-hand side of the engine, a specification plate is located on the central cylinder. A yellow directional arrow sticker is located on the rotating section of the engine below the specification plate (location for photography, this section is designed to rotate and hence this sticker is not fixed in this location). At the rear of the cylinder, a plastic cap with small air cut outs protects the air-cooled engine from contaminants. At the front of the engine, the location for securing the bearing down tube is located. On the right-hand side of the lock for the bearing down tube is the handle, to which a string is often attached for switching the motor on and off by a shearer bent at the waist (not pictured). Sticker. Gold writing. Front of shearing motor “Sunbeam” Plate. Inscribed. Side of shearing motor. “Sunbeam / SHEARING MOTOR / MADE IN AUSTRALIA / 0.5 H.P. / 220/240 V / 1 PHASE A.C. / 4.0 AMPS / 50 C/S. / CONT. RTG. / 1425 R.P.M. / CLASS A INSUL / NO. J244560 / TYPE: NSB5C2/49." sheep sheering, shearing equipment, sunbeam, electric shearing motor

This is the Bridge Section of a ship’s telegraph and is a Duplex Gong model, made by Chadburn & Son of Liverpool. This duplex gong model would sound two signals whenever the navigational commands were given by the ship’s pilot to change the speed or direction. The ship’s telegraph was installed on Flagstaff Hill’s exhibit of the 1909 Hobart, Tasmania, ferry “SS Rowitta” installed in 1975 and enjoyed for more than 40 years. Communication between the ship’s pilot and the engine room in the late 19th century to the mid-20th-century was made with a system called an Engine Order Telegraph (E.O.T.) or ship’s telegraph. The equipment has two parts, the Bridge Section and the Engine Room Section. The Bridge Section is usually mounted onto a pedestal, and the Engine Room Section is attached to a vertical surface. The standard marine commands are printed or stamped around the face of the dial and indicated by a pointer or arrow that is usually moved by a rotating brass section or handle. The ship’s pilot stationed on the Bridge of a vessel sends his Orders for speed and direction to the Engine Room with the E.O.T. He moves the lever or levers, depending on the number of engines the ship has, to change the indicator on the Bridge Section’s dial to point in the new direction and speed of travel. This change causes the Orders to be duplicated on the Engine Room Section’s dial and a bell or bells to signal the change at the same time. The engineer then adjusts the ship’s engines and steering equipment to follow the pilot’s Order. CHADBURN & SON, Liverpool- Chadburn Brothers, William and C.H., were joint inventors and well-established makers of optical and scientific instruments and marine gauges. The firm was granted the Prince Albert Royal Warrant in the late 19th century. In 1870 William Chadburn applied for a patent for his navigational communication device for use on ships. By 1875 Chadburn & Son was producing the brass Engine Order Telegraph in its plant at 71 Lord Street, Liverpool. In 1911 the ship RMS Titanic was launched, fitted with Chadburn & Sons E.O.T. The Chadburn Ship Telegraph Company Limited was registered in 1898 to take over Chadburn & Sons. In 1903 a large factory at Bootle, near Liverpool, and their products were being sold overseas. In 1920 electric-powered telegraphs were developed. In 1944 the name changed to Chadburn’s (Liverpool) Limited. In 1968 the company became Chadburn Bloctube Ltd. In 2000 the company, now Bloctube Marine Limited, was still manufacturing ship telegraphs. SS ROWITTA: - The 1909 steam ferry, SS Rowitta, was installed as an exhibit at Flagstaff Hill in 1975 and was enjoyed by many visitors for 40 years. Rowitta was a timber steam ferry built in Hobart in 1909 using planks of Huon and Karri wood. It was a favourite of sightseeing passengers along Tasmania’s Tamar and Derwent rivers for 30 years. Rowitta was also known as Tarkarri and Sorrento and had worked as a coastal trading vessel between Devonport and Melbourne, and Melbourne Queenscliff and Sorrento. In 1974 Rowitta was purchased by Flagstaff Hilt to convert into a representation of the Speculant, a historic and locally significant sailing ship listed on the Victorian Heritage Database. (The Speculant was built in Scotland in 1895 and traded timber between the United Kingdom and Russia. Warrnambool’s P J McGennan & Co. then bought the vessel to trade pine timber from New Zealand to Victorian ports and cargo to Melbourne. It was the largest ship registered with Warrnambool as her home port, playing a key role in the early 1900s in the Port of Warrnambool. In 1911, on her way to Melbourne, it was wrecked near Cape Otway. None of the nine crew lost their lives.) The promised funds for converting Rowitta into the Speculant were no longer available, so it was restored back to its original configuration. The vessel represented the importance of coastal traders to transport, trade and communication in Australia times before rail and motor vehicles. Sadly, in 2015 the time had come to demolish the Rowitta due to her excessive deterioration and the high cost of ongoing repairs. The vessel had given over 100 years of service and pleasure to those who knew her. This Bridge section of a ship’s Engine Order Telegraph, used with an Engine Room section, represents late-19th century change and progress in communication and navigation at sea. This type of equipment was still in use in the mid-20th century. The object is significant for its association with its maker, Chadburn & Son, of Liverpool, a well-known marine instrument maker whose work was recognised by English Royalty, and whose products were selected to supply similar equipment for use on the RMS Titanic. This ship’s telegraph is connected to the history of the Rowitta, which was a large exhibit on display at Flagstaff Hill Maritime Village from the museum’s early beginnings until the vessel’s end of life 40 years later. The display was used as an aid to maritime education. The Rowitta represents the importance of coastal traders to transport, trade and communication along the coast of Victoria, between states, and in Australia before rail and motor vehicles. The vessel was an example of a ferry built in the early 20th century that served many different roles over its lifetime of over 100 years. Bridge section of a Ship’s Telegraph or Engine Order Telegraph (E.O.T.). The round double-sided, painted glass dial is contained within a brass case behind glass. It is fitted onto an outward tapering brass pedestal with a round base. The brass indicator arrows between the handles point simultaneously to both sides of the dial when moved. An oval brass maker’s plate is attached to the top of the case. The dial’s faces have inscriptions that indicate speed and direction, and the front face and plate include the maker’s details. A serial number is stamped on the collar where the dial is fitted to the pedestal. The ship’s telegraph is a Duplex Gong model, made by Chadburn & Son of Liverpool. Dial, maker’s details: “PATENT “DUPLEX GONG” TELEGRAPH / CHADBURN & SON / TELEGRAPH WORKS / PATENTEES & MANUFACTURERS / 11 WATERLOO ROAD / LIVERPOOL” LONDON / 105 FENCHURCH STREET” “NEWCASTLE / 85 QUAY + SIDE” “GLASGOW / 69 ANDERSON QUAY” “PATENT” Dial instructions: “FULL / HALF/ SLOW / FINISHED WITH ENGINES / STOP STAND BY / SLOW / HALF / FULL / ASTERN / AHEAD” Maker’s plate: “CHADBURN / & SON / PATENT / LIVERPOOL” Serial number: “22073”flagstaff hill, warrnambool, maritime village, maritime museum, shipwreck coast, great ocean road, engine order telegraph, e.o.t., navigational instrument, communication device, ship’s telegraph, engine room section, bridge section, rms titanic, chadburn & son, chadburn brothers, william chadburn, chadburn ship telegraph company, chadburns, duplex gong, liverpool, ss rowitta, navigation, marine technology, pilot’s orders, steam power, hobart, tasmania, devonport, tasmanian-built, ferry, steam ferry, steamer, 1909, early 20th century vessel, passenger vessel, tamar trading company, launceston, george town, sorrento, tarkarri, speculant, peter mcgennan, p j mcgennan & co. port phillip ferries pty ltd, melbourne, coastal trader, timber steamer, huon, karri, freighter, supply ship, charter ferry, floating restaurant, prawn boat, lakes entrance

Set of 33 Notice Paper or Meeting Agendas - sent to Trust Members and others for The Melbourne Tramways Trust for period March 1884 to Feb. 1885. Printed by Ferguson and Moore for the Trust. Signed by the Secretary. Covers construction arrangements, appointments, financial, loans, debentures, legislation, arrangements with the Melbourne Tramway and Omnibus Company and other organisations including banks. Notes are the principal items shown in the Orders of the Day. Printed by Fergusson and Moore Meeting No. Date Notes 1 14/3/1884 Appointment of Solicitor, E. G. Fitz Gibbon interim Secretary 2 21/3/1884 Appointment of Solicitors and Bankers 4 4/4/1884 Confer with MTOC and appointment of an Engineer. Signed by Hugh T. Jordan as clerk. 6 18/4/1884 Consider different routes, elect a Works Committee 7 25/4/1884 Confer with Mr. G. Duncan. 8 2/5/1884 Report from Legislative Committee, appointment of Mr. Duncan as Engineer to the Trust. 2nd copy has handwritten note regarding confirmation of the appointment. 9 9/5/1884 Consideration of amendments to the Act. 10 16/5/1884 Authorisation of borrowing of #500,00 and appointment of a Secretary. 11 23/5/1884 Finance report. 12 30/5/1884 Meet with deputation to have Lygon St line extended to Brunswick and payment of accounts. 13 6/6/1884 Applications for Secretary, and petition for Lygon St extension. 14 13/6/1884 Legislative committee report 15 20/6/1884 Advance to MTOC and assist bill through Parliament 16 27/6/1884 Works committee report. Signed by T. Hamilton as Secretary. 17 4/7/1884 Payment of accounts, including G. Duncan and office accounts. 18 11/7/1884 Construction of one line of tramway and another attempt for the Lygon St tramway again. 19 16/7/1884 Reduction of debenture interest rate to 4% and paying for cutting down of Swanston St. 20 1/8/1884 Interest fixed at 4.5%, accounts, construction of Richmond line, and meeting dates. 21 15/8/1884 Payments to MTCo re cost of original Acts. 22 29/8/1884 Sealing of Debentures to England, and accounts 23 5/9/1884 Re amendments to Bill for Tramway Act and payment for patents. 24 19/9/1884 Accounts, overhang of tramcars, completion of tramways. 25 26/9/1884 Tenders for works, finance report, payment of MTT expenses by MTOC. 26 10/10/1884 Works committee Report – copy in file – payments of accounts and recommend acceptance of Duncan’s plans and Richmond line by public tender. 27 Special 20/10/1884 Letter from MTOC re possible delays in the Bill – additional Branches bill. 28 24/10/1884 Finance – debentures now in England, appointment of H. Jordan as Treasurer and accounts. 29 7/11/1884 Works committee and accounts, purchase of cement, letter from Mr. Pyman re rejection of petition. 30 21/11/1884 Shows chairman’s name – Thomas O’Grady, approval of plans etc for the Richmond line. 31 5/12/1884 Works committee, accounts, payment to Mr. Pyman, purchase of equipment and engines for the Northern lines and appointment of an inspecting Engineer in England. Queries from England re sufficiency of the guarantee on the debentures. 32 19/12/1884 Finance Committee report – accounts. 33 9/1/1885 Finance and works – accounts, tenders for cement etc, appoint of an inspector of works, authorise plans for Brunswick, Fitzroy and Spencer St and Collingwood and Nicholson St. 34 23/1/1885 Finance and works – accounts, report on tenders. 35 6/2/1885 Committee reports, accounts, land purchase, appoint of Mr. Carruthers as inspecting Engineer in England – 1% of value of work. For a word version - see: \dbtext\hawthtramcoll\images\htd2001doc.doctrams, tramways, mtt, cable trams, melbourne tramways trust, construction, finances, mto co

This was used as a dummy propeller when test running aircraft engines.This is a heavy wooden propeller for an aircraft. It is painted blue with birch tips. It has a large centre hole of 8 cm diameter. It has 8 bolt holes of 18 mm diameter. The propeller tips are squared (ie not tapered). One side of the blades have an aeronautical curved form.aircraft maintenance, propeller

Original held by Mr. Mike Rosel. Relates to series of images, reg. No P000027, P000028.2, P000029.3, P000030.2, P000031, P000032Photograph shows Port of Echuca from a slight height looking lengthways (north ward) with the steam train carriages and the wharf dominating the view. Murray river on the right, Murray esplanade on left with Star hotel visible and Federal Ale sign of the northern fence beyond the hotel. Sawmill is a commercial concern (steam visible above roof). Steam train marked A2 and 996 on the front of the engine. Various equipment , including manual cranes, visible on and around the wharf. Cargo shed is clearly visible on the wharf.Black and white photograph of the Port of Echuca from a slight height looking lengthways, (north) with steam train and wharf dominating the view. Murray river on the right and Murray Esplanade on left. Cranes and cargo shed clearly visible with other wharf machinery running along the side of the wharf. Star Hotel visible on the far left of the photograph. Saw mill (in background) is still a working operation.On train "A2" and "996". "Federal Ale" sigh on the fence beyond the Star Hotel.port of echuca, sawmill, steam trains, echuca wharf, rosel, mike

DHC-4 Caribou light transport The Royal Australian Air Force DHC-4 Caribou was a versatile tactical light transport aircraft . Its main operational role was tactical air transport in support of the Australian Army. The Caribou was last operated by No 38 Squadron from RAAF Base Townsville in December 2009. The Caribou is a twin-engined high-wing monoplane with full-span double-slotted Fowler flaps and fully-reversible propellers, which allow it to achieve its trademark steep approach with very short take-offs and landings on unprepared runways. The high wing and distinctive high placement of the tail provide easy access to a large cargo compartment, while the low-pressure tyres permit operation on unprepared runways. It was the last piston-engined aircraft in the Air Force and was our only aircraft to employ the Low Altitude Parachute Extraction System (LAPES), where up to 2000kg of sled-mounted cargo is extracted from the aircraft by a parachute from a metre above the ground. The Caribou is equipped with GPS satellite navigation and night-vision equipment, giving it the capability to operate in any weather, day or night, to either land or drop soldiers and equipment by parachute with pinpoint accuracy. The Caribou is not pressurised and is not fitted with auto-pilot or weather radar. The first Caribou arrived in Australia in April 1964 and they were deployed to Vietnam from July 1964 to February 1972 and carried over 600,000 passengers and a huge quantity of cargo while they were there. Since 1997 the Caribou participated in famine-relief operations in Papua New Guinea and Irian Jaya during Operations SIERRA, PLES DRAI and AUSINDO JAYA, as well as the tsunami-relief operation in PNG in 1999 and operations in East Timor and the Solomon Islands since 1999. Their service life was over 40 years. raaf caribou aircraft

Refers to service of LAC Lance & Percy CoatesThis is a pocket sized booklet. It has a blue cardboard cover. It is fastened with two staples. THE PRINTING IS IN BLACK INK, IT HAS A RUBBER STAMP OF MCGILLS Agency, Melbourne. Inside it has 31 pages of aircraft silhouettes. Page 31 has drawings of a German paratrooper and his equipment.First page written in ink is LAC Coates. There are a few penciled entries with aircraft engine power.ww2, aircraft, paratrooper
