Digital TIFF file Scan of 35mm Ilford FP3 black and white negative transparencygeorge coop collection, echuca railway station, brill bogie

Shows the wheel arrangement of a Maximum Traction Brill 22E truck or bogie.Yields information about Ballarat tram No. 35 and one of its bogies.Black and White photograph of SEC Ballarat tram 35 fitted with a Brill 22E truck or bogie. Photo by Keith Kings 16/3/1963On rear has the photographers file number (O)(l)(14)ballarat, depot, tramcars, bogies, brill 22e

Photo shows Brill 22E Maximum Traction bogie or truck - Geelong tramcar, has the SEC logo on the side of the tramcar in the view. One of a set of photos was taken between 15/2/1956 and 3/3/1956 when services operated only between Belmont and North before the final closure of the Belmont route on 25/31956 and that bogie tram 31 is not shown on the board, having gone to Ballarat on 15/2/1956 - see item 5554. See item 8213 for an article on the Geelong system by Keith Kings. Yields information about the Geelong bogie trams.Black and white Negative - 120 sizetramways, geelong, brill 22e, maximum traction, bogie trams

Drawing details brake rigging and dimensions for a Brill 22E truck. Dated 4/8/1947, prepared by the SEC Geelong branch, signed by H N Hornabrook 6/8/47 showing the layout and loads on each part of the brake system, drawing No. T1647. See item 9025 and 9857 for other versions.Yields information about the brake rigging for Brill 22E trams and demonstrates the activities of the SEC Geelong office.Drawing - blueprint, titled "Brake rigging dropped centre double bogie tram Brill maximum traction truck 22E, Trams Nos. 31,""D1775" in ink on top sheet right hand corner.brill 22e, drawings, brake rigging, geelong

Black and white photograph of CW5 684, route 70 outbound in Batman Ave. Ray Pearson's photo listing dates the photo as 1937. The CW5 tramcar was effectively a W5 tram using Brill 22E bogies or trucks as an economy measure during the mid-1930s. The trams were underpowered, with MMTB No. 15 bogies being fitted in 1956. Most of the louver sashes have been lifted, indicating a hot day.Yields information about a CW5 class tram and its fitment at the time with Brill 22E trucks.Black and white print with adhesive marks and photographers stamp on the rear.Has "R W O Pearson" stamp on the rear.tramways, tramcars, cw5 class, tram 684, route 70, mmtb, batman ave

Photos show Geelong 40 being loaded for transport to Geelong 40 on 27-3-1956. The tram became Ballarat No. 43 1 - tram lifted on four jacks with a single trucker behind 2 - Liftng a Brill 22E bogie onto the truck gooseneck. 3 - Tram lifted prior to backing the truck under it. 4 - Tram body lowered onto the truck. 5 - Ready for departure - note the destination of Belmont. See Item 6734 for other photographs.Yields information about the transport of Geelong 40 to Ballarat.Set of 5 black and white photographs of Geelong 40 being lifted and readied for Transport to Ballarat.tramways, trams, sec tramways, geelong, geelong depot, tram 40, tram 43

Article looks at the development of the maximum traction bogie, the Brill 22E in regard to the engineering aspects. Written by N. F Henley with drawings of the various concepts and history of the Brill truck. See item 9663 for s similar article on the Brill 21E truck.Yields information about the development of the Brill 22E truck which is used on some of the BTM trams.Seven A4 sheets, photocopy of an article titled "The development of the Manchester bogie" from the UK magazine Tramway Review published by the Light Railway Transit Association, Winter 1988.trams, tramways, maximum traction, bogies, trucks, brill trucks

Contains an article that looks at the development of the four wheel Brill 21E in regard to the engineering aspects. Written by N. F Henley with drawings of the various concepts and history of the Brill truck. See item 7384 for s similar article on the Brill 22E truck.Yields information about the development of the Brill 21E truck which is used on some of the BTM trams.Magazine 40 pages, centre stapled, Tramway Review published by the Light Railway Transit Association, Autumn 1990.trams, tramways, bogies, trucks, brill trucks, brill 21e

Drawings - "GE-T7-7680B - Maximum Traction Side bearing Brill 22E" showing the casting that holds the wearing brasses in position on the top sides of the bogie. Revision B, drawn July 1948 in the Geelong drawing office and signed by Mr H Hornabrook. Pattern TP 345.Yields information about the side bearing holder for a brill 22E truck.Drawing - dyeline print, folded - GE-T7-7680Btramways, secv, brill 22e, 22e trucks, castings

Typed note, dated 5/3/1959, regarding measuring the weight distribution on a Maximum Traction tramcar, pony wheel, using a jack with a pressure gauge. Appears to be a theoretical document. Has the initials JRP in the top right-hand corner. See item 10065 for a method using a weight and a knife edge.Yields information about a method of measuring the weight distribution of a Brill 22E or maximum traction bogie.Document - foolscap typed sheet with hand written note.On front in ink "S/S Lacks"? and on rear "Depot Foreman"tramways, secv, tramcars, maximum traction, pony axles, brill 22e, weight distribution

Negative and Digital images from the Wal Jack Ballarat Negative files of most likely Geelong No. 40 bogies being offloaded by Yellow Express Crane from the delivery truck in the depot yard. The truck with the two bogies is awaiting unloading. The tram itself has been lifted off the truck within the depot building. If Geelong 40 bogies, then Wal Jack photo 29-3-1956. Became Ballarat No. 43 - see Reg Items 7787, 5211, 5345 and 5346 also.Yields information about how bogie trams were transported to Ballarat from Geelong and then received into the depot and offloading the bogies.Negative and digital image.trams, tramways, delivery of tramcars, bogie trams, depot, tram 40, tram 43

Set of two black and white photographs which have been coloured to show possible arrangements for covers to the side frames of a Brill 21E and Brill 22E (single truck or four wheel truck or bogie tram). 1793.1 - Showing possible arrangement for a cover for a maximum traction tram truck - cover has been outlined in red and then coloured to match the tram colour. The body has been coloured as well with green and yellow colours. 1793.2 - ditto for single truck tram No. 20. Background for the preparation of these photographs is unknown. Date unknown.trams, tramways, trucks, covers, brill trucks, tram 20

Yields information about the drawings that were used by the depot or workshop staff as reference drawings. Has a strong association with the depot workshop staff. Yields information about equipment on Ballarat tramcars and Signalling.Folder containing 46 blueprints or Dyeline prints of SEC tram equipment drawings. Front of folder made from a cloth back sheet of paper extended to secure to a thick cardboard runner. Rear of folder made from an old tram advertising panel or cardboard sheet, cut to size and secured to a thick cardboard runner with a cloth backing on both sides. Sheets secured with three brass screwed clips. Front cover damaged in bottom right hand corner. Rear cover breaking apart on outside around cloth binding. Heavy dirt marks from “grease” on bottom half of rear cover. Contains 46 drawings which have been individually catalogued and numbered on the rear of each drawing within the folder. Some of the drawings have been folded. Reg Item Micro Film No. Old BTPS No. SEC Drawing No Title 4807 42/4 1 VB4/8103C Westinghouse T1F Controller Main Cylinder Segments. 4867 47/2 2 BA-T8-8128 Westinghouse 225N Motor Case Bolt 4830 22/3 B 3 BA-T7-7666 Half Ball Brake Hanger Link, Driving Wheel, Brill Maximum Traction Truck 22E 4868 44/3A 4 BA-T8-8113 Split Suspension Bearing for Type W225 Motor (Westinghouse) 4869 52/2 5 BA-T8-8158 Contact Tips for G.E. Compressor Controller 4818 52/3 6 BA-T8-8159 GE B-23 Contact Finger Tips for G.E. Type ‘B’ Main Cylinder 4870 6/1 7A BA-T3-6734 Brass Nut for Switch Mechanism 4829 6/2 7B BA-T3-6735 Tongue Clip Link for Switch Mechanism 4871 6/3 7C BA-T3-6736 Fulcrum for Switch Mechanism 4872 6/4 7D BA-T3-6737 Plunger for Switch Mechanism 4832 7/6 8 BA-T3-6754 Pivot for Switch Mechanism No numbers 9 or 10 4873 17/5 11 BA-T7-7639 Detail of Motor Pinion for Brill Cars 4831.2 21/4 B 12 BA-T7-7661A Half Ball Hanger Links – single bogie trucks 4874 21/6 13A BA-T7-7663 Axle Box Inner Spring Driving Wheels Maximum Traction Truck 22E 4875 22/1 13B BA-T7-7664 Axle Box Outer Spring Driving Wheels Maximum Traction Truck 22E 4876 22/2 14 BA-T7-7665 Body Spring Brill Maximum Traction Truck 22E 4830.2 22/3B 15 BA-T7-7666A Half Ball Brake Hanger Link Driving Wheel Brill Maximum Traction Truck 22E 4877 22/4 16 BA-T7-7667 Body Spring, Brush Maximum Traction Truck 22E 4820.2 22/6 A 17 BA-T7-7669 Wear cups for Half Ball Brake Hanger Links, Single & Double Bogie Trucks 4878 50/5 18 BA-T8-8149 Connections of Line Breaker and Ratchet Switch for use with Drum Controller 4879 74/6 19 BA-T13-8757/9 Signal boxes, Back of Panel Wiring and External Connections 4880 45/1 20 BA-T8-8116 Trolley Harp 4806 15/3 21 BA-T7-7625 Equalizing Lever, Fulcrum, Brill 21 E truck 4881 15/5 22 BA-T7-7626A Brake Beam Fulcrum Brill 21E truck 4808 16/1 23 BA-T7-7628 Pinion Remover, GE 201G and GE 202 motors 4882 16/3 24 BA-T7-7630 Spring Posts, Brill 21E Truck 4883 21/3 25 BA-T7-7660 Brake Shoe Holder, Driving Wheel, Maximum Traction Truck Brill 22E 4884 21/5 26 BA-T7-7662 Brake Rod Guide, Single Bogie Trucks 4885 22/5 27 BA-T7-7668 Brake Shoe Holder, Pony Wheel, Maximum Traction Truck Brill 22E 4809 42/2 B 28 BA-T8-8101 Trolley Wheel and Axle 4815 42/1 B 29 BA-T8-8102A Motor Suspension Bearing, GE 202 Motor 4796.2 42/5 30 BA-T8-8104 Connection Diagram WH 225N Motor 4886 42/6 B 31 BA-T8-8105B Motor Suspension Bearing, GE 201 Motor 4797.2 48/6 32 BA-T8-8137 WH T1F Controllers 4816 49/2 33 BA-T8-8138 Connection Diagram GE 202 Motor 4887 49/3 34 BA-T8-8139 Connection Diagram K-36-J Controller 4888 50/3 35 BA-T8-8146 GE K-36-JR Controllers, with line breaker (Connection diagram) 4889 50/6 36 BA-T8-8150 Commutator for Westinghouse 225N Motor 4846 51/1 37 BA-T8-8151A Armature Bearing Lining, Commutator End, Type GE 201G Motor 4813 51/2 38 BA-T8-8152 Armature Winding Diagram Westinghouse 225 Motor 4840.2 51/40 39 BA-T8-8154A Armature Bearing Lining, Pinion End, Type GE201G Motor 4890 51/6 40 BA-T8-8156 Armature Bearing Lining, Pinion End, Type GE202A Motor 4891 52/1 41 BA-T8-8157A Armature Bearing Lining, Commutator End, Type GE202A Motor 4892 64/5 42A BA-T9-8392A Step Hangers, Single and Double Bogie Trucks, Hinged Type 4785.2 64/6B 42B BA-T9-8392/1A Step Hangers, Single and Maximum Traction Trucks, Fixed Type 4812.2 43/1 43 BA-T8-8106B GE K36J Controller, Main Cylinder Segments 4893 50/2 44 BA-T8-8145A GE B23E Controller, Main Cylinder Segments 4816 65/2 45 BA-T9-8394B Door Lock for Motorman’ Cabin Maximum Traction Trucks. 4810 73/3 46 BA-T13-8757 Ballarat Electric Tramways Signalling System, Arrangements & Details of Box.On front cover of folder, "1 - 46"trams, tramways, drawings, ballarat, sec, depot, workshops

Provides information about the tendency of Brill Maximum Trucks or bogies (22E) to derail.1 - Single Foolscap sheet - typed, though not formally titled, the subject of the note was ""Why do maximum traction trucks derail?” Looks at the way a Brill 22E truck works, weight distribution, wheel, and rubbing plates wear, and rail wear issues. Dated 11/6/1975. Noted that Tony Smith of then BTPS asked the question. 2 - copy of letter to James Lerk of Bendigo Trust dated 16/6/1983 re adjusting the weight distribution - refers to SEC Geelong and Ballarat methods and MMTB practices.Has Bob's initials under the last paragraph.trams, tramways, brill trucks, maximum traction, derailments, maintenance

Yields information about maximum traction Brill 22E trucks.Black and white photograph of a Brill 22E truck. on a bogie tram. trams, tramways, bogies, brill trucks, maximum traction

Yields information about Geelong trams in the late 1940's and the rear of a bogie tram showing a 22E truck.Photograph - black and white of a Geelong bogie tram, most likely No. 31 given Reg Items 7239 and 7243 showing the detail of a 22E truck and side of the tram. Photo taken at North. Photo dated 29-3-1948. Based on handwriting, photo by Leon Marshall-Wood. Negative scanned at 3200dpi 9/6/2020 9/6/2020.In pencil on the "Geelong Depot 29/3/1948"trams, tramways, geelong, north, maximum traction, brill trucks, tram 31

Black and White photograph of a Brill 22 E type, used on maximum traction bogie trams. One of a series of photographs done by the MMTB to illustrate the various types of bogies used by the MMTB. Possibly during the 1960's.trams, tramways, mmtb, brill trucks, brill 22e, bogies, trucks, preston workshops

Photo by Chris Wurr in January 1971 of a Ballarat bogie tram parked on 0 road of a Brill 22E Maximum Traction truck or bogie with the sun, showing the truck and the main springs that are very oily. The SEC logo is well detailed as well.Yields information about the Brill 22E truck or bogieDigital - Black and white imagetramways, trams, depot, bogie tram, brill 22e

Demonstrates aspects of the two types of trucks or bogies used on Ballarat trams and their design basis. Photocopied from a catalogue.Five pages, each page trimmed to a slightly different width, photocopy of an article titled "Maximum-traction truck: Brill Eureka", reproduced from the 1905 Brill catalogue. Gives details of the truck, its capability, basis, use in New York for example, how it functions, load and speed capacity, motor size, basic dimensions, limitations and drawings. Copy made at time of filing. Scanned copies of all sheets added 25/3/15.trams, tramways, trucks, maximum traction, brill trucks

Demonstrates aspects of the two types of trucks or bogies used on Ballarat trams and their design basis. Photocopied from a catalogue.Five pages, each page trimmed to a slightly different width, photocopy of an article titled "Brill's 21-E traction truck", reproduced from the 1905 Brill catalogue. Gives details of the truck, its capability, basis, use in New York for example, how it functions, load and speed capacity, motor size, basic dimensions, limitations and drawings. 2nd copy held as well - on toner based copy rather than heat sensitive paper. Scanned copies of all sheets added 25/3/15.trams, tramways, trucks, 21e trucks, brill trucks

Green folder gold block printed cover for "The J.G. Brill Company" and associated companies containing the following bulletins. All four pages, unless noted otherwise, printed on art paper, with the company name associated companies and agencies - e.g. Noyes Bros in Australasia. Contain a photo of the truck, a photo of a vehicle using the truck or bogie, line diagram, dimensions and parts diagram and listing. Bulletins 229, 246, 247 and 249 are for window (sash) components seats. Give diagrams and photos of this equipment. 1. No. 220 - The Brill 21E truck 2. No. 221 - Brill No. 50E truck 3. No. 224 - The Brill 27MCB truck 4. No. 225 - The Brill 76E truck 5. No. 227 - The Brill 39E truck 6. No. 228 - The Brill 77E truck 7. No. 229 - The Brill Renitent Post 8. No. 234 - The Brill 78M truck for light weight cars 9. No. 236 - Parts of Brill Short Base Pivotal Truck No. 27G 10. No. 237 - Parts of Brill Short Base Pivotal Truck No. 27F 11. No. 238 - Parts of Brill High Speed Truck No. 27E 12. No. 240 - Two Important Brill full elliptic Spring Trucks - 51E and 68E types. 13. No. 242 - The Brill 79E truck for Birney Safety Cars 14. No. 246 - Brill Reversible seats - Winner and Waylo types - 8 pages 15. No. 247 - Brill Non-reversible seats. 16. No. 249 - The Motorman's seats for Birney Safety cars. (different style of layout). All contained with a 'Shipman's "Common-Sense" Binder', comprising a green cloth covered cardboard, continuous cover, printed end papers, binder clips for inserting documents. Style No. 62848. Gold block front with name of company and Brill logo and on spine of document "Brill Publications" in gold. Has a ESCo date stamp of 3 May 1921 on front page of Bulletin No. 220.On front cover of first Bulletin, date stamp of ESCo, Ballarat "3 May 1921" in purple ink.trams, tramways, 21e trucks, j c brill co, bogies, interurban, birney, brill trucks

Catalogue No. 206 of the J. G. Brill Co. of Philadelphia PA, titled "Brill Trucks" on front cover and "City and Interurban Trucks" on page 1. Comprises: Card cover very light grey on outside, grey inside which is a larger size than that of the rest of the book. Has the names of the J. G. Brill associated companies (American Car Company of St. Louis, G. C. Kuhlman Car Co. of Cleveland Ohio, Wason Manufacturing Company of Springfield, Massachusetts and Compagnie J. G. Brill, Paris France) as well. On the inside of the front cover and on the inside back cover are patterns involving the Brill logo. To the printed catalogue is a matching out 4pp again with the same Brill logos. This sheet is the same size as the text pages. Forty page printed text on a heavy gloss manila colour art paper. Front cover gives details of Brill's office addresses, and agents, including the Australasian agent - Noyes Brothers. Page 3 gives an introduction to the quality of Brill trucks and page 39 gives an index to the various trucks and components. Each truck type has a photograph, parts list and dimension details. Trucks covered are: Radiax, 21E, 22, 22E, 27E, 27F, 27G, 27MCB, 39E, 50E. Equipment detailed are the Half-Ball brake hanger, oil retaining center bearing, standard journal (axle) box, solid forged side frames and axle data. Page 38 details the information to be provided when ordering trucks. Image of each sheet added 25/3/2015.On front cover, date stamp of ESCo, Ballarat "1 Apr 1914". The printers signature is shown on page 40.trams, tramways, 21e trucks, 22e trucks, j. c. brill co., bogies, interurban

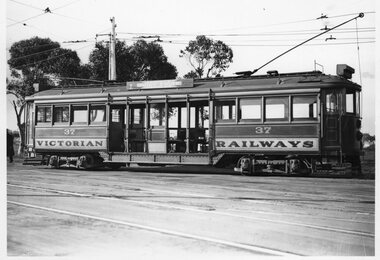

Photo shows Victorian Railways tramcar No. 37 at Elwood depot. Bogies or trucks are of the Brill 77E type.Yields information about the Victorian Railways bogie trams.Photograph - Black and White - VR 37 at Elwoodtramways, trams, victorian railways, vr trams, elwood depot, brill 77e, tram 37

Photo shows Victorian Railways tramcar No. 42 and 33 at Elwood depot. Bogies or trucks are of the Brill 77E type. Note the oil lamp on the driver's dash panel - all VR trams carried them.Yields information about the Victorian Railways bogie trams.Photograph - Black and White - VR 42 and 33 at Elwoodtramways, trams, victorian railways, vr trams, elwood depot, brill 77e, tram 42, tram 33

Set of two The J. G. Brill Company specifications for the "The Brill 77-E Truck" - four pages, printed on heavy semi gloss paper, giving an image of the truck or bogie, a photograph of a tramcar using them, details of the truck and its springing, dimensions, limitations, use and list of parts and their names. Has company details on the top of the Bulletin with international agencies listed - Noyes Brothers of Melbourne and Sydney and later on in Brisbane and R. W. Gardam of Perth. 745.1 - Bulletin No. 228 - dated 1917 - note spelling of Sydney as Sidney 745.1 - Bulletin No. 259 - dated 1922745.1 - has Noyes Bros. (Melbourne) Pty Ltd stamp on rear giving their address.trams, tramways, j c brill co, tramcar specifications, tramcar construction, 77e truck, trucks, bogies

Set of four colour prints of an Ex Victorian Railways bogie tram body at Sloan NSW. Photo by Norm Cross, printed on AGFA paper. Photo dated 1/1/1994. Advised by Tony Smith - 29/3/2017 "The tram in question is VR 39. It was one of the last 4 trams disposed of from Elwood depot in 1959 after the system closed. They were purchased complete by Upton's machinery dealers of Corowa. The other cars were 29, 33 & 37. He then stripped them and sold the bodies. When we obtained VR 41 in 1977 we immediately went searching for other bodies that might yield parts to help in rebuilding 41. We located 37 on the outskirts of Wangaratta and it yielded many body items including a complete drivers bulkhead that was used to replace the one in VR 41 that had been cut out with an axle by the previous owner. You may also recall that we obtained 3 complete broad gauge 77e trucks from Upton's (they had cut up the other 5 bogies years previous). These 77E trucks are now under the Christchurch Brill tram with the 3rd as a spare as we were able to obtain standard gauge 77e's when we acquired L 105 for dismantling."Each photo has written in ink on the rear "Body of VR tram # @ Sloan NSW 1 Jan 1994, photo by Norm Cross".trams, tramways, vr trams, sale of trams, scrapped trams, tram 39

Set of 12 reports, photocopied onto heat sensitive paper from various magazines. Documents match the image numbers. .1 - 2 pages, from The Commonwealth Engineer, 1/10/1917 - "New Cars for the Melbourne Brunswick and Coburg Tramways", written by Straun Robertson. .2 - 2 pages, from The Commonwealth Engineer, 1/3/1919 - "Double Bogie Combination Tram Car - St Kilda Brighton Electric Line". .3 - 2 pages - Electrical Engineer - 15/6/1924 - "One Man cars for Melbourne and Geelong Vic. The Brill Birney Safety Car" .4 - 1 page - Electrical Engineer - 15/11/1925 - "Standard Car for Melbourne Tramways" - has sketch of W2 369. .5 - 2 pages - Electrical Engineer - 15/8/1927 - "New Bogie car for Melbourne Tramways" Y class. .6 - 2 pages - Electrical Engineer -15/3/1936 - "Tramcar of New type for Melbourne - Large car for Two-man or One-man operation" - Y1 class .7 - 3 pages, The Electrical Engineer and Merchandiser - 15/3/1932 - "Modern Tramcars for Melbourne - Design for reduction of noise and construction with electrical Welding" W3 class. .8 - 2 pages, The Electrical Engineer and Merchandiser - 15/11/1933 - "New Tramcars for Melbourne" - has sketch of the W4 class tram. .9 - 3 pages, The Electrical Engineer and Merchandiser - 16/12/1935 - "Melbourne's Lates Tramcars, comfortable Accommodation and modern traction equipment" - W5 class .10 - 3 pages - The Electrical Engineer and Merchandiser - 15/3/1939 - "Improved Type Tramcar - advanced truck design, pneumatically operated doors, special lighting, acceleration 3pmh per sec." SW5 class. .11 - 3 pages - The Electrical Engineer and Merchandiser - 15/9/1950 - "Noiseless Tramcar - first Australian Vehicles - Bogies fitted have special noise reducing features - motor drive through bevel gears, dynamic braking" - PCC 980 (See also Reg Item 5601 for a similar report) .12 - 1 page - handwritten on the rear of a copy of item 11 - Editorial from the Oct. 1951 issue of same magazine looking at the rate of acceleration. Reprint of .7 added 30/7/2019, from papers ex Robert Green - in poor condition, has been folded, both left and right hand edges in multiple tears. The photos are good. Measures 282H x 220W.trams, tramways, mmtb, mbctt, new tramcars, vr, bogie trams, birney, x class, w2 class, y class, y1 class, w3 class, one man trams, w4 class, w5 class, sw5 class, pcc class, tramcar design, electrical engineering

Handwritten list titled "Car Data - Trucks and Motors", listing the various MMTB trucks or bogies, type, car and class, wheel size, length, axle diameter, motor type and horsepower, weight with or without motors. Lists Brill Trucks, Single Trucks, and bogie trucks up to W3 or No. 9B trucks. Not known who prepared this list, could have been copied from a MMTB drawing. W3's built late 1930.trams, tramways, lists, trucks, bogies, brill trucks, mmtb, motors, w3 class

Black and White photograph of a Brill 21E type, used on four wheel trams. Note the motor suspension spring is not located in the original position provided for on the truck. One of a series of photographs done by the MMTB to illustrate the various types of bogies used by the MMTB. Possibly during the 1960's. Two copies held.trams, tramways, mmtb, brill trucks, brill 21e, bogies, trucks, preston workshops
