Historical information

The original Hall Braille writer was modelled on the typewriter and was the first successful mechanical point writer. Frank Haven Hall, Superintendent of the Illinois Institution for the Blind, introduced his invention to the public on 27 May, 1892 at Jacksonville, Illinois. It was manufactured by Harrison and Seifried, Chicago, ca 1892. The carriage moves one space to the left as the keys are released. The styli in the embossing heads are controlled by the keys as are the bars on a typewriter. The styli operate from the back so that letters appear in the normal position for reading. Braille writers enable all dots in a Braille cell to be created simultaneously.
This model was found in the Braille and Talking Book Library in South Yarra prior to the staff departure in 2000. Presumably used by either staff or volunteers at the library.

Physical description

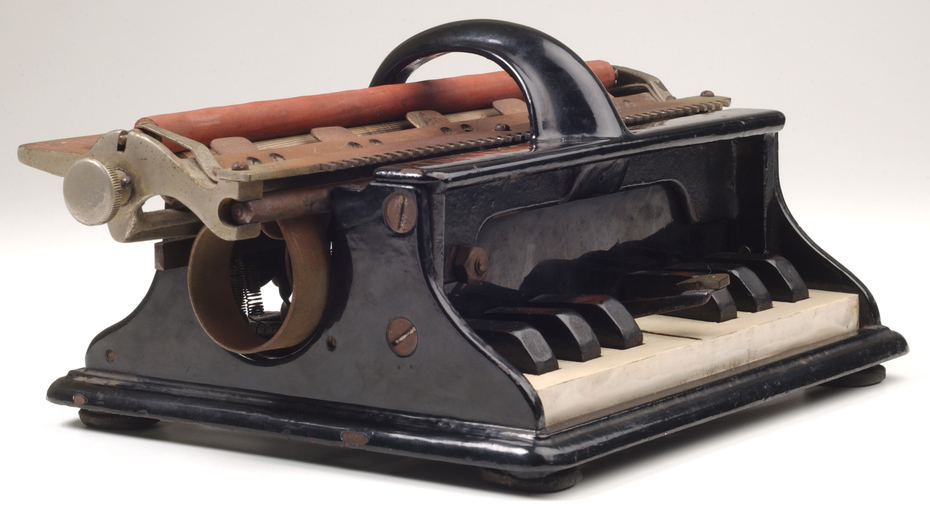

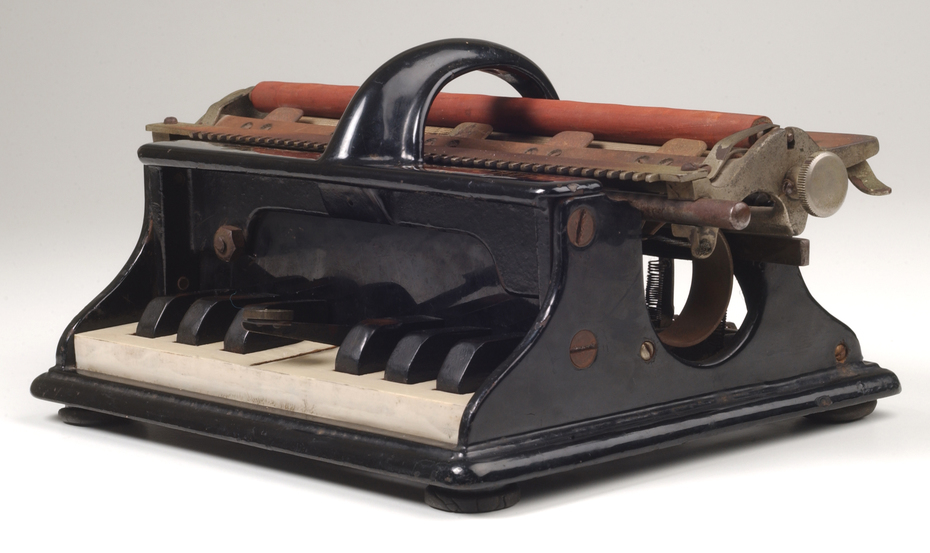

Braille writer with a key board like a piano with black wooden keys on an ivory board. The body is made from heavy cast iron with a black lacquer.

Inscriptions & markings

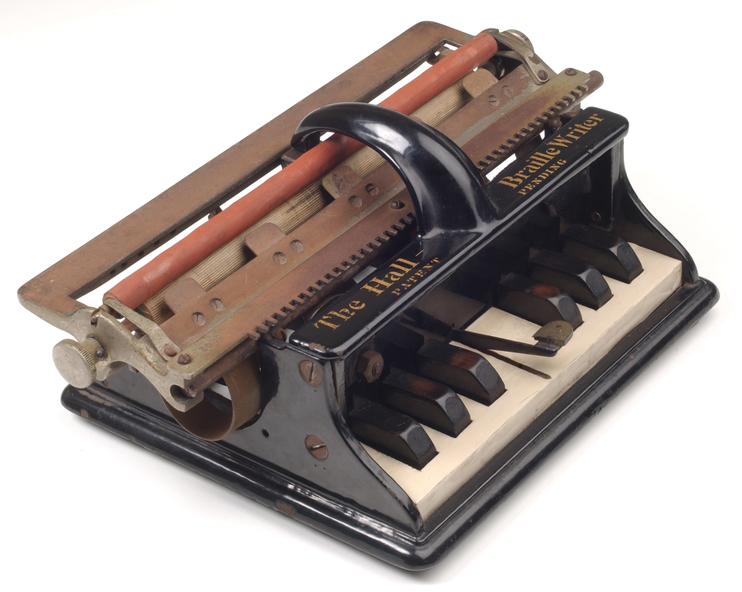

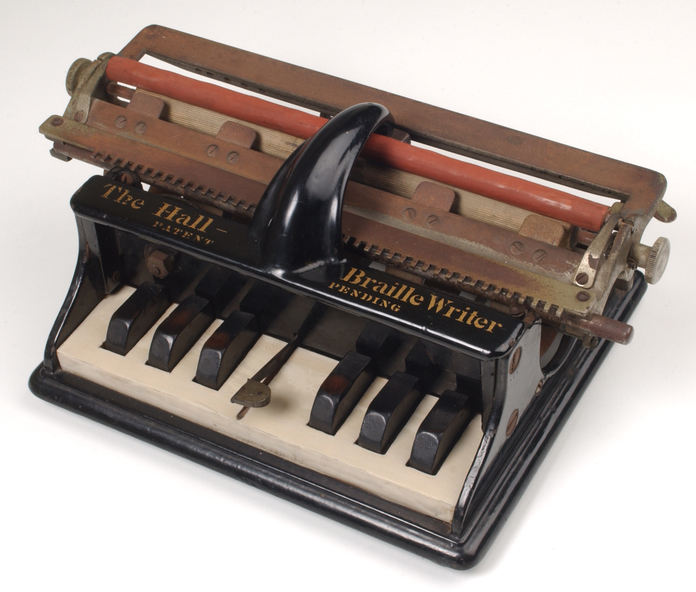

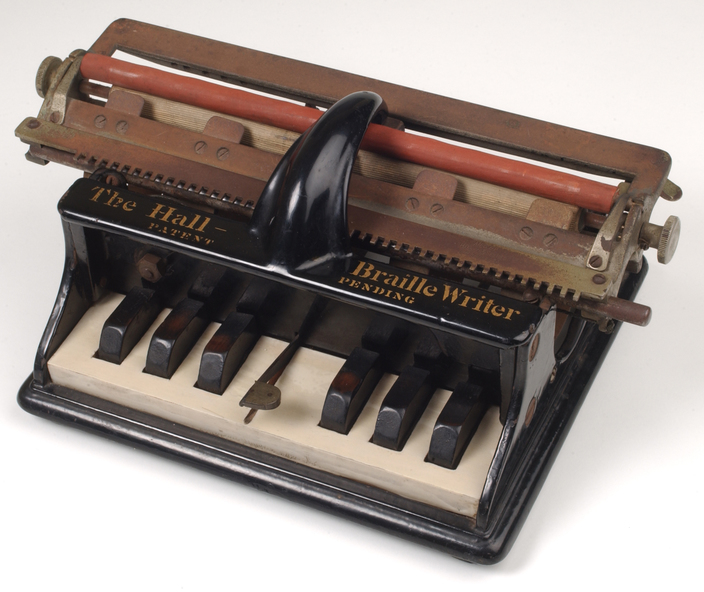

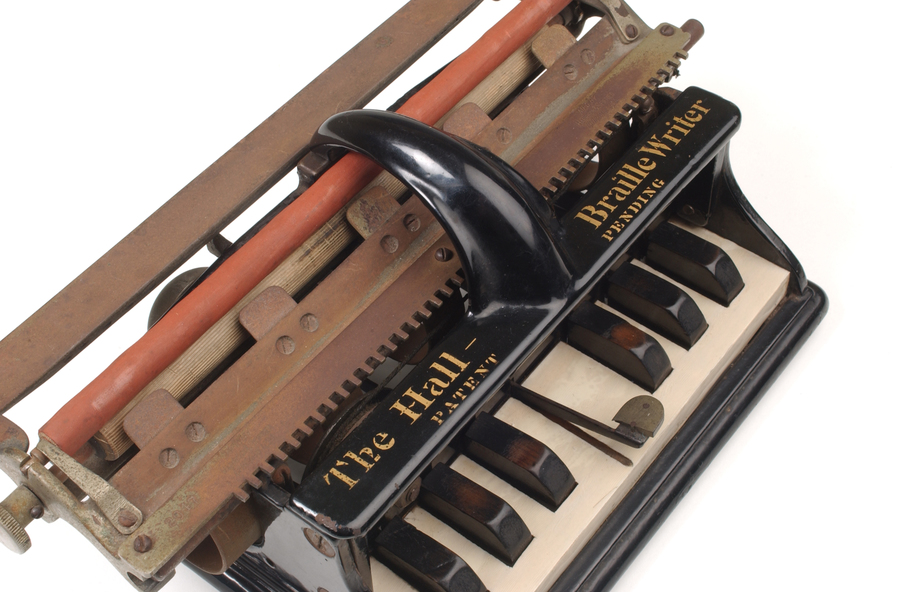

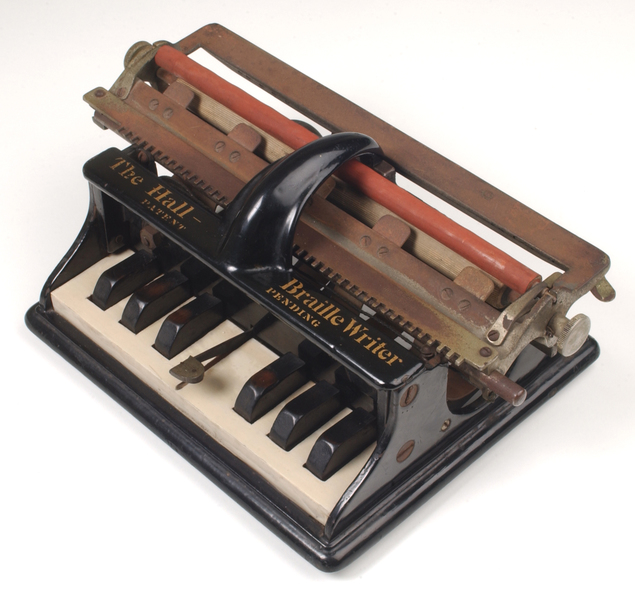

Painted in gold on top of the machine: "The Hall Braille Writer / patent pending
