Drawing, Original by Hadfield's and print by Warren Doubleday, "Ballarat Plan 6", 1995

Significance

Yields information about a new depot for Ballarat - the track plan proposed but not followed through for ESCo. Gives the layout and the proposed manufacturer Hadfield's.

Physical description

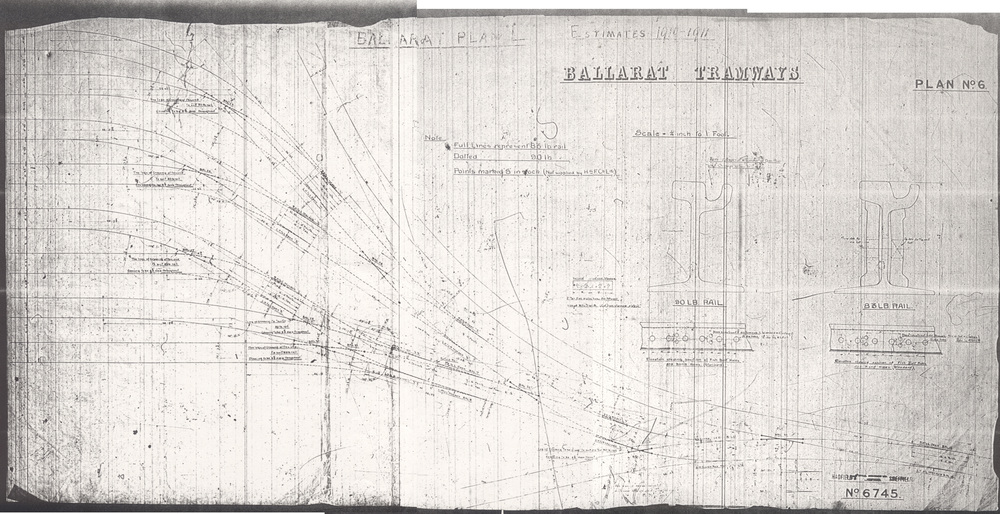

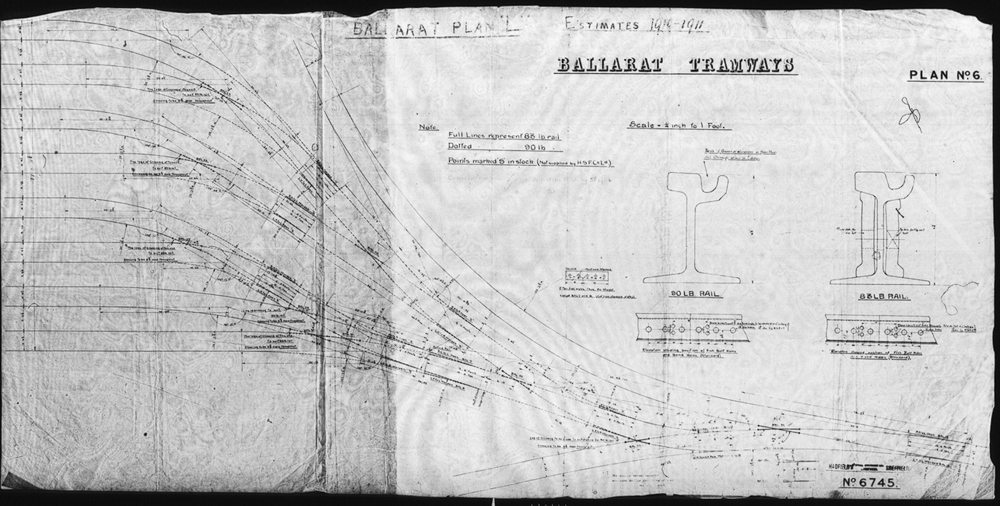

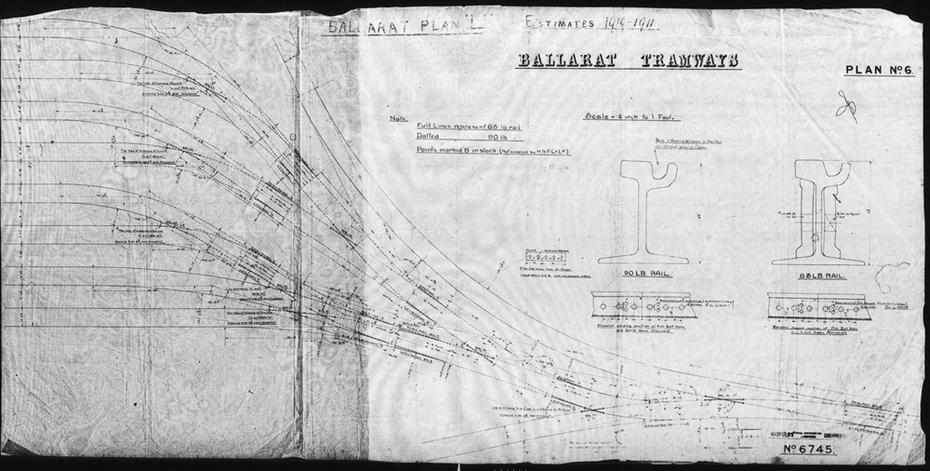

Print made from a microfilm using a microfilm printer, of "Ballarat Plan 6", a drawing showing trackwork for a new tram depot proposed for the ESCo owned property near the power house. Shows an 8 track tram depot in association with existing Wendouree Parade trackwork.



Prepared by Hadfield's Sheffield, drawing No. 6745 as Plan No. 6. Gives details of the proposed rail weights - 90lb and 83lb and location details.



Drawing held as one complete assembled print and two part prints. The assembled print was scanned.



Note not printed at full size.



See Alan Bradley article on the Power Station and power supply to Ballarat.
