Drawing - BA-T5-7177, State Electricity Commission of Victoria (SECV), "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction .", 1935

  • "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ."

    "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ."

  • "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ."

    "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ."

  • "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ."
  • "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ."

Historical information

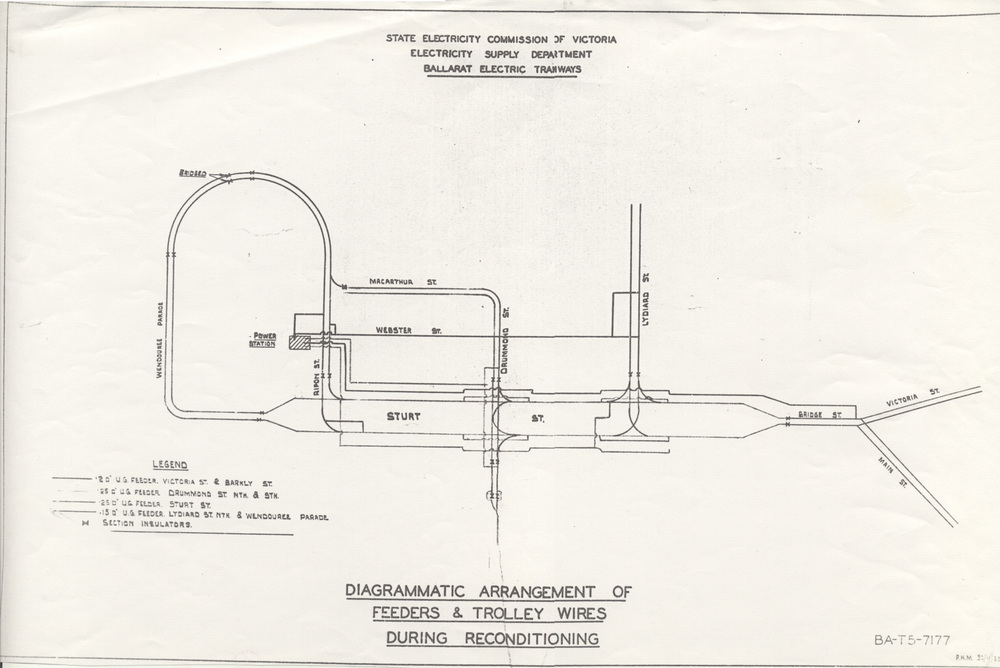

SEC Drawing BA-T5-7177 - "Diagrammatic arrangement of Feeders and Trolley Wires during Reconstruction ." Shows the layout of the feeders and part of the trolley wire, power station, whether underground, cable size and location of section insulators and size of cable. Made by SEC in Nov. 1935.
Note not printed at full size.
Two copies held.

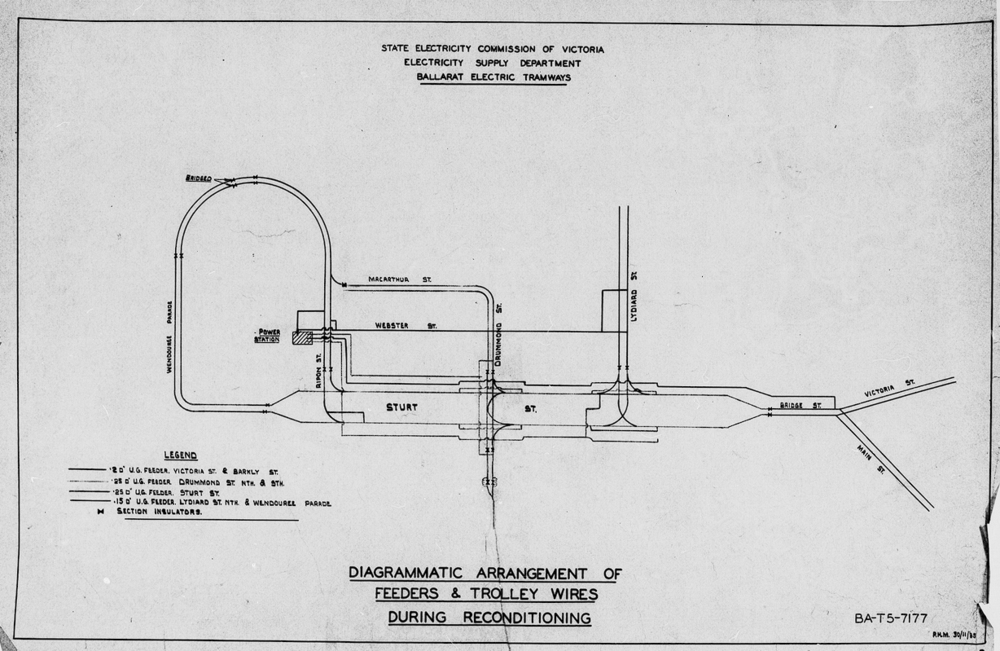

image i2 taken from the microfilm - see item 4307, sheet 11

Significance

Yields information about overhead planning for the refurbishment of the Ballarat Tramway System and in particular the intersection of feeders and trolley wire electrical distribution.

Physical description

Print made from a microfilm using a microfilm printer.
