"Rolling stock data No. 2"
Can you reuse this media without permission? Yes
Public domain
This media item is listed as being within the public domain. As such, this item may be used by anyone for any purpose.
Please acknowledge the item’s source, creator and title (where known)
Have a question? Contact Melbourne Tram Museum
Untitled image
Can you reuse this media without permission? Yes
Public domain
This media item is listed as being within the public domain. As such, this item may be used by anyone for any purpose.
Please acknowledge the item’s source, creator and title (where known)
Have a question? Contact Melbourne Tram Museum

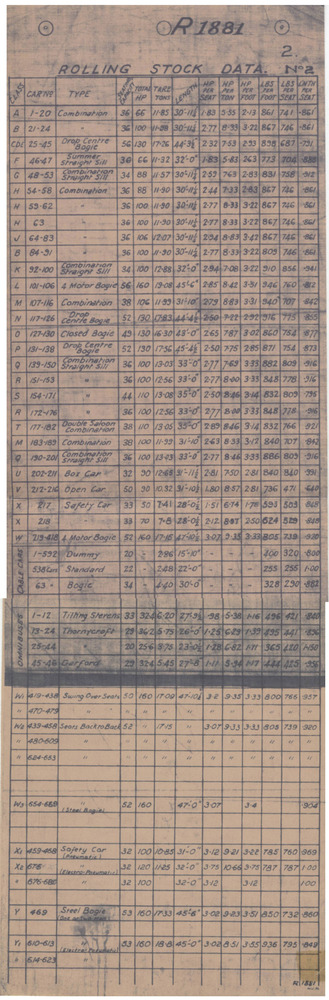

Dyeline print of Drawing R1881 - titled "Rolling stock data No. 2", listing MMTB tramcars from class A to class Y1, W's to W3 only, c1931. Provides tramcar numbers, type, seating capacity, total horsepower, tonnage (weight), length and data of HP/seat, HP/ton, HP/foot, Lbs/foot, Lbs/seat and Length/seat.

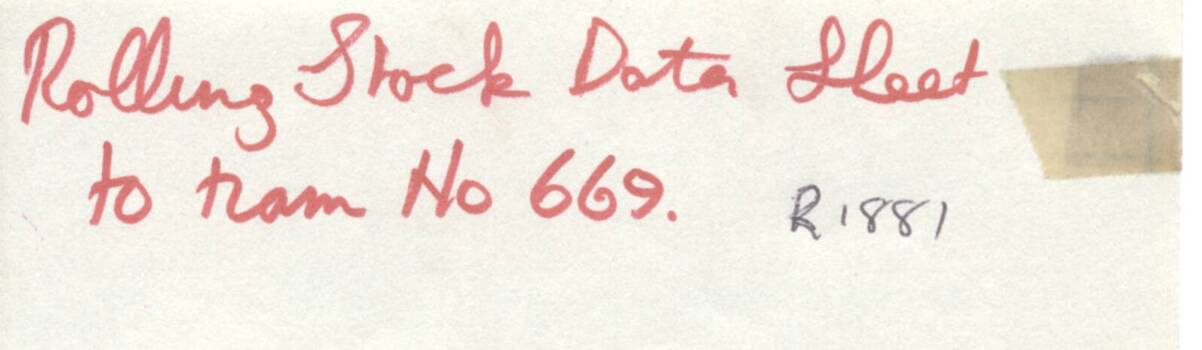

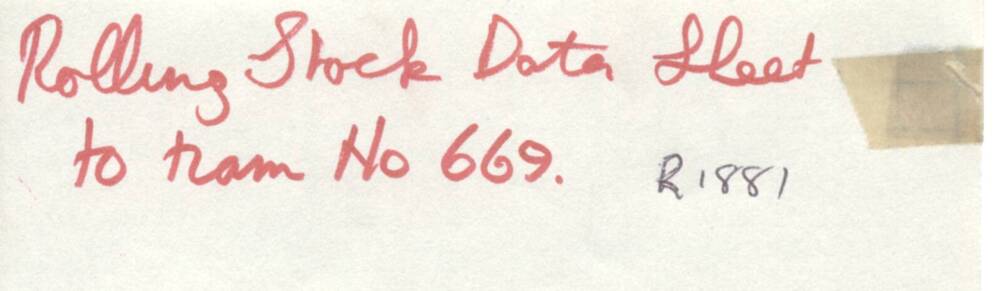

On rear in red ink - felt pen? - "Rolling Stock Data Sheet to Tram No. 669." and in black ink "R1881"
Drawing of the floor plan showing seats, controls, dimensions and technical data for the Birney X class tram No. 217. Drawn by C Andrews 10/1967 and based on MMTB drawing R2462.
Yields information about the MMTB Birney X 217
Drawing - ink on mylar sheet.
tramways, tramcars, x class, tram 217, drawings, birney
