Physical description

Set of four drawings of electrical and brake equipment on VR Tramcars.

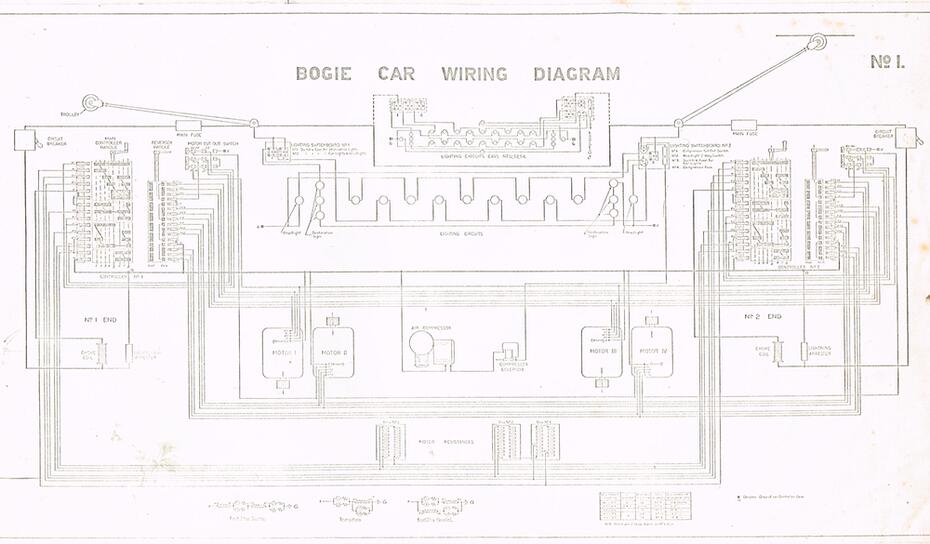

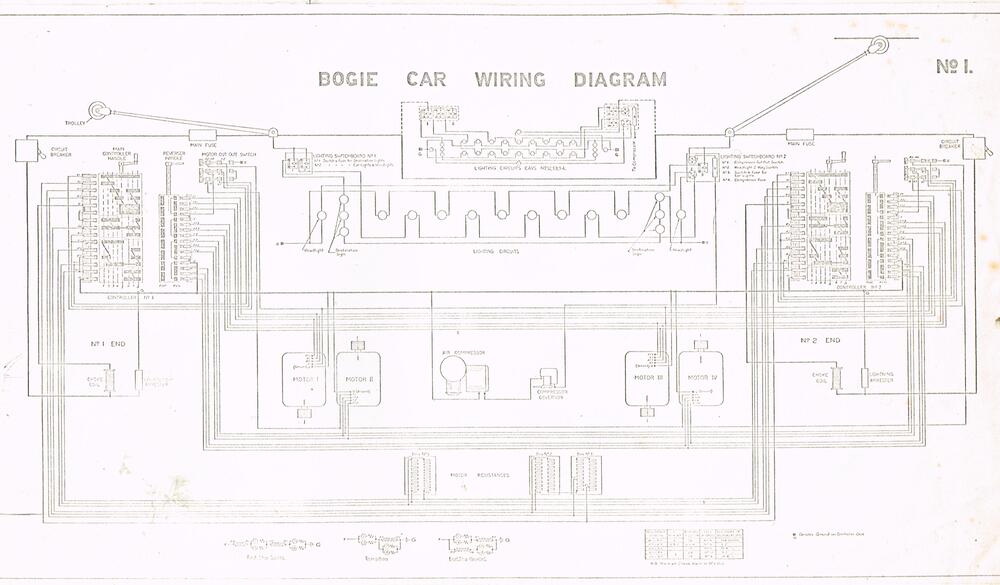

.1 - No. 1 - Bogie car wiring diagram - shows all equipment including lights, compressors, motors and switches. Has a different lighting circuit for the 52 to 54. 4 copies held.

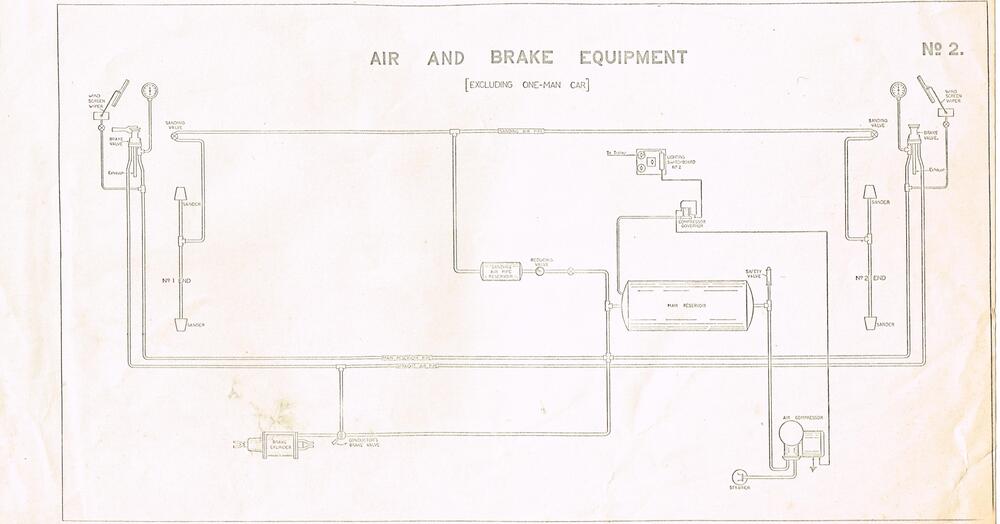

.2 - No. 2 - Air and Brake Equipment (Excluding one-man car) - shows all equipment including wipers, conductor's brake valve

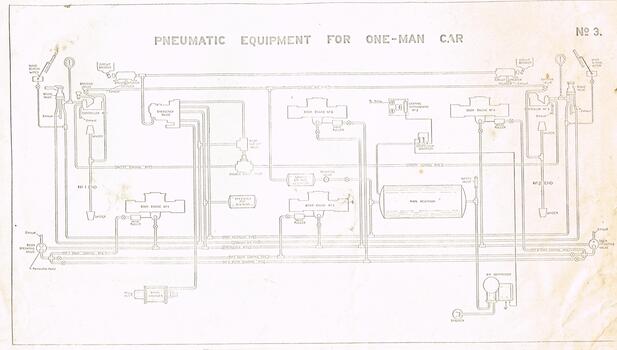

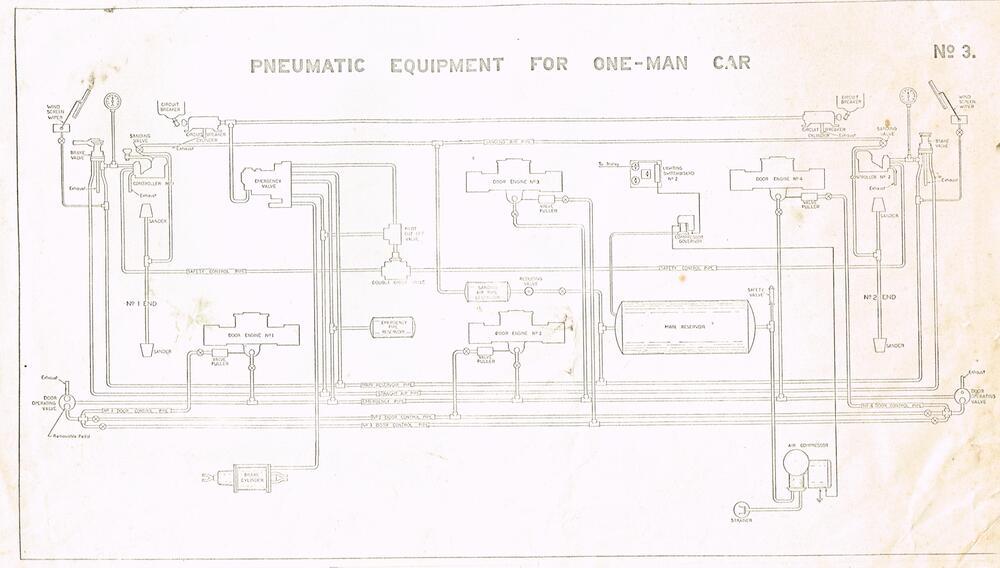

.3 - No. 3 - Pneumatic Equipment for One-man car - shows all equipment including door engines, emergency valves, emergency reservoirs, door valves and links to controller.

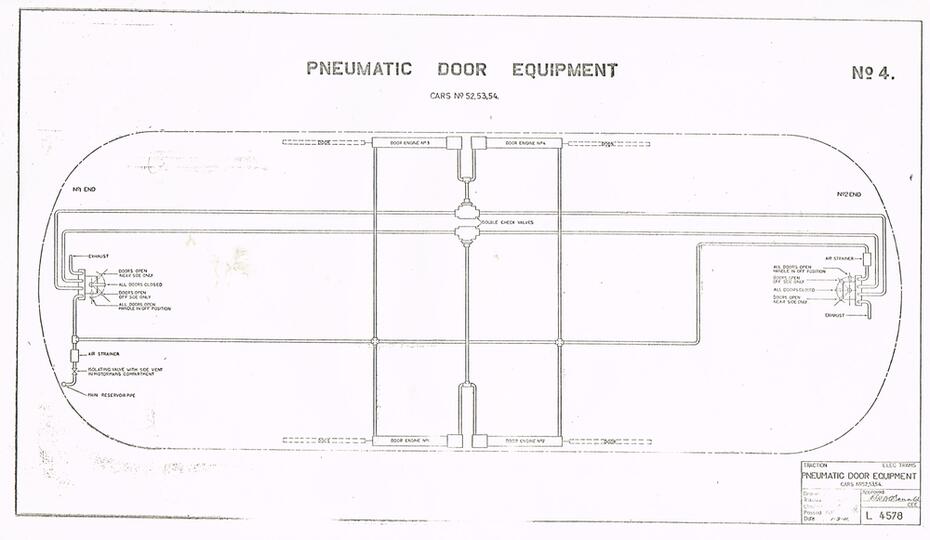

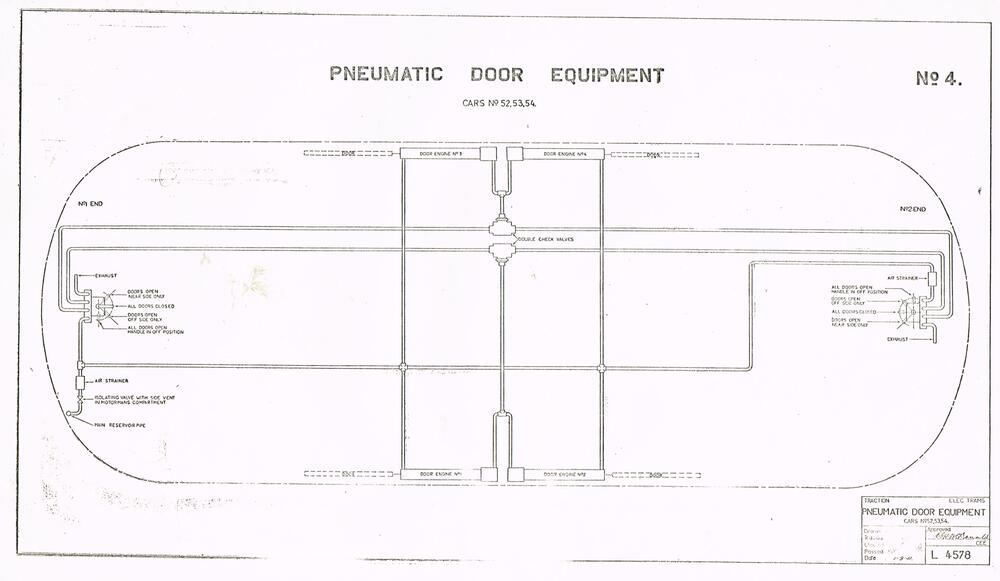

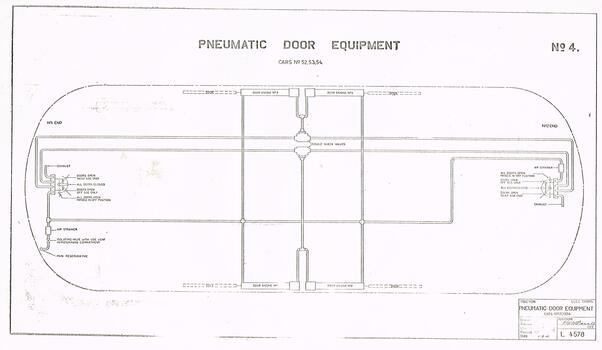

.4 - No. 4 - Pneumatic Door Equipment - cars 52 to 54 - including door controller valve positions.
