Drawing - Digital Image, Melbourne and Metropolitan Tramways Board (MMTB), "R2010 - Single Type Truck axle box springs", 1927

Historical information

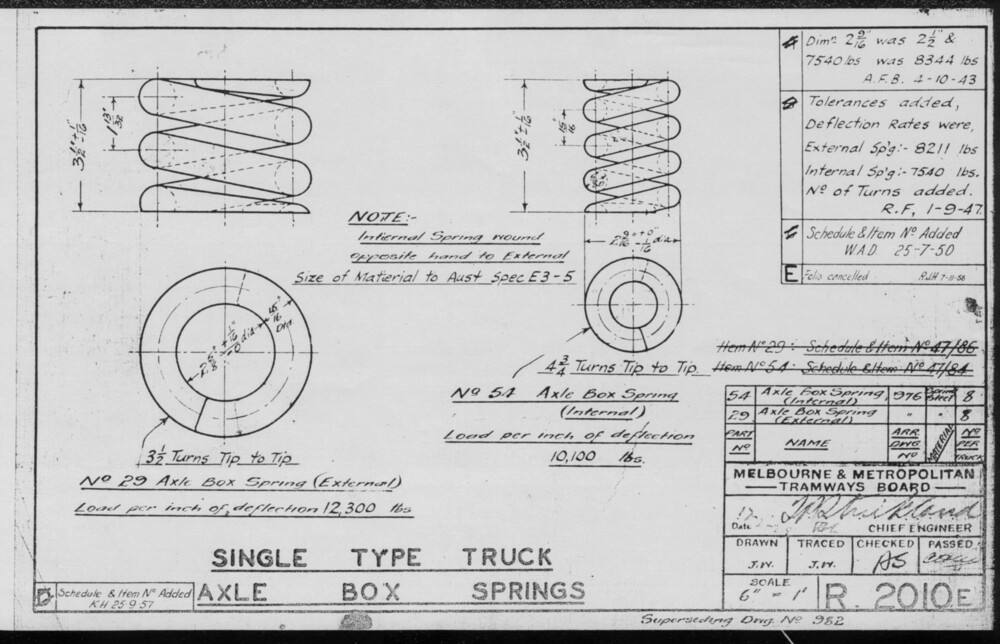

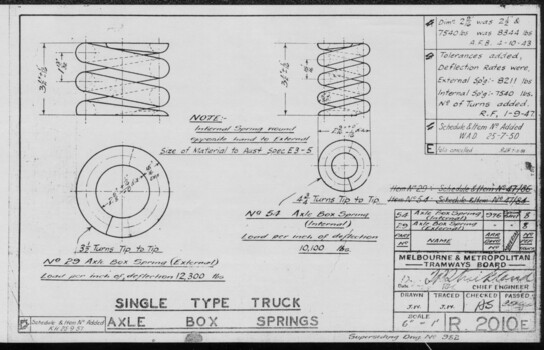

The drawing provides details of the two sets of springs that fit on either side of the axle box of a Brill 21E four-wheel truck. Gives load, sizes, and material dimensions. Revision E dated 7-11-1958. Prepared by the MTTB for use on four-wheel trams. Original drawing dated 30/9/1927

Significance

Yields information about Brill 21E truck axle box springs.

Physical description

Drawing Foolscap size with two punched holes on the left hand side.
