Historical information

Steam Locomotive - 2-6-2 2-6-2 Beyer Peacock & Co Garratt NGG16 No.129 build No. 7430
Loco - Garratt NG129
Date acquired - 1996
Acquired from - South African Railways
State when acquired -
Work done - Currently being rebuilt to 2 ft 6 in (762 mm) gauge as a backup for G42. Expected Return to service in 2019.
Restored to service -

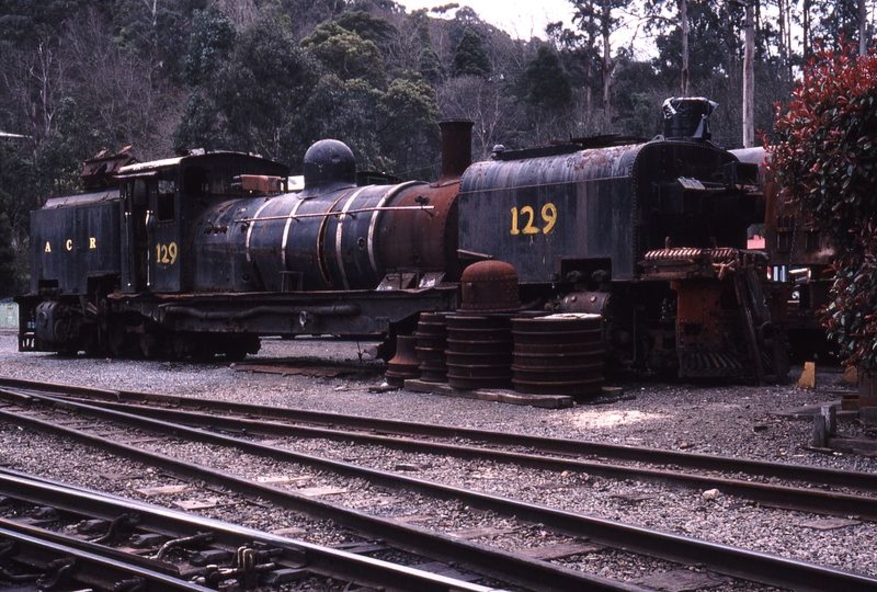

Current State - Currently being Rebuilt

It was built by Beyer Peacock & Co of Manchester (builder's No.7430 of 1951) to their "Beyer Garratt" patented design of articulated steam locomotive.

The South African Railways Class NG G16 2-6-2+2-6-2 of 1937 is a narrow gauge steam locomotive.

Between 1937 and 1968, the South African Railways placed 34 Class NG G16 Garratt articulated steam locomotives with a 2-6-2+2-6-2 Double Prairie type wheel arrangement in service on the Avontuur Railway and on the Natal narrow gauge lines -
The third order was for a further seven locomotives in 1951, numbered in the range from NG125 to NG131, once again from Beyer, Peacock. These and the subsequent locomotives had welded water and coal bunkers and flat-topped water tanks with rounded top side edges.

The Beyer, Peacock locomotives ordered by the SAR, numbers NG109 to NG116 and NG125 to NG131, were shared more or less equally between the Natal and Avontuur lines

Significance

Historic - Overseas - South African - Narrow Gauge Railways - Steam Locomotive

Physical description

Steam Locomotive - 2-6-2+2-6-2 Beyer Peacock & Co Garratt NGG16 No.129 build No.7430 made of steel, wrought iron and iron
