Equipment - Instruction Card, Lamps, Signalling Daylight, Short Range, MK II, PMG 1942, 1942

Untitled image

Reuse this media

Can you reuse this media without permission? No (with exceptions, see below)

Conditions of use

All rights reserved

This media item is licensed under "All rights reserved". You cannot share (i.e. copy, distribute, transmit) or rework (i.e. alter, transform, build upon) this item, or use it for commercial purposes without the permission of the copyright owner. However, an exception can be made if your intended use meets the "fair dealing" criteria. Uses that meet this criteria include research or study; criticism or review; parody or satire; reporting news; enabling a person with a disability to access material; or professional advice by a lawyer, patent attorney, or trademark attorney.

Attribution

Please acknowledge the item’s source, creator and title (where known)

Have a question? Contact Montmorency/Eltham RSL Sub Branch

Physical description

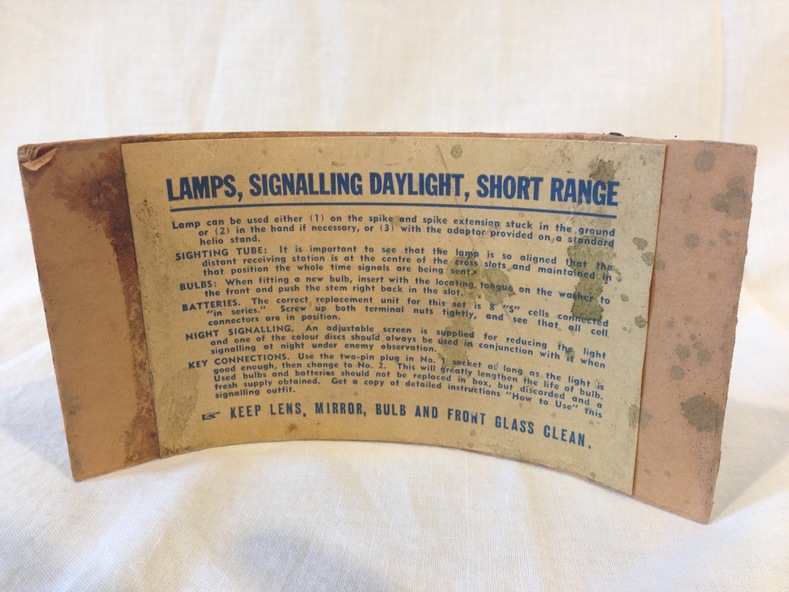

Dark blue printed instructions on paper mounted on a buff coloured cardboard card.

Inscriptions & markings

LAMPS, SIGNALLING DAYLIGHT, SHORT RANGE
Lamp can be used either (1) on the spike and spike extension stuck in the ground or (2) in the hand if necessary, or (3) withe the adaptor provided on a standard helio stand.
SIGHTING TUBE: It is important to see that the lamp is so aligned that the distant receiving station is at the centre of the cross slots and maintained in that position the whole time that signals are being sent.
BULBS: when fitting a new bulb, insert the locating tongue on the washer to the front and push the stem right back in the slot.
BATTERIES: The correct replacment unit for this set is 8 "S" cells connected "in series". Screw up both terminal nuts tightly, ans see thar all connectors are in position.
NIGHT SIGNALLING: An adjustable screen is supplied for reducing the light and one of the colour discs should always be used in conjunction with it when signalling at night under enemy observation.
KEY CONNECTIONS. Use the two-pin plug in No.1 socket as long as the light is good enough, then cahnge to No.2. This will greatly lengthen the life of bulb. Used bulbs and batteries should not be relaced in the box, but discarded and a fresh supply obtained. Get a copy of detailed instructions "How to Use" this signalling outfit.
KEEP LENS, MIRROR, BULB AND FRONT GLASS CLEAN.
