Drawing - Electrical Wiring - diagram of Truck Shop Testing Area
Can you reuse this media without permission? Yes
Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0)
This media item is licensed under Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0). You may share (i.e. copy, distribute, transmit) this item provided that you attribute the content source and copyright holder; do not use the content for commercial purposes; and do not rework (i.e. alter, transform, build upon) the material.
Please acknowledge the item’s source, creator and title (where known)
Have a question? Contact Melbourne Tram Museum

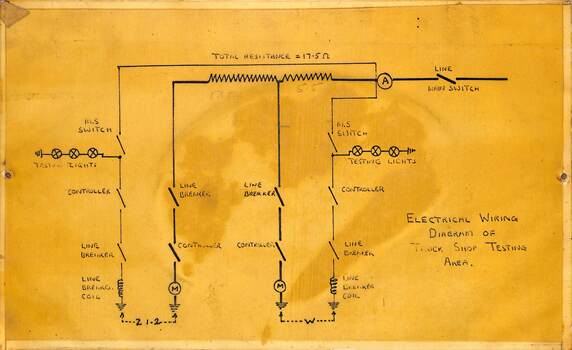

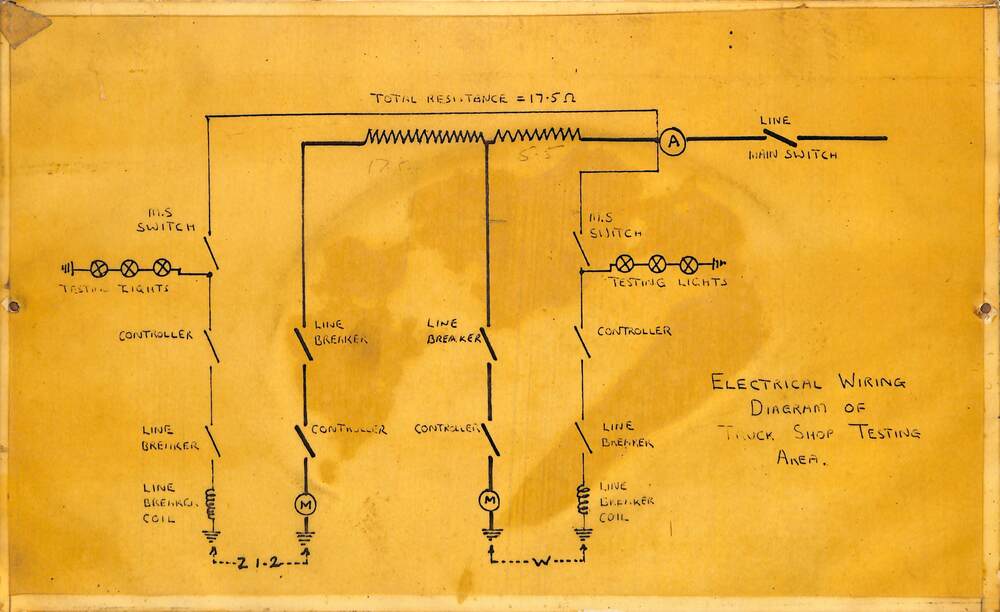

Prepared by Preston Workshops staff, in the Truck Shop, to show the electrical apparatus line diagrams for testing of motors in a bogie or truck.
Demonstrates the equipment used to test tramcar bogies or trucks prior to fitting to a tramcar.
Drawing - dyeline print taped and edged to a piece of masonite. Has two screw holes for mounting on either side.
