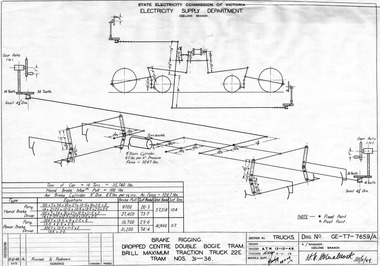

Drawing details brake rigging and dimensions for a Brill 22E truck. Dated 4/8/1947, prepared by the SEC Geelong branch, signed by H N Hornabrook 6/8/47 showing the layout and loads on each part of the brake system, drawing No. T1647. See item 9025 and 9857 for other versions.Yields information about the brake rigging for Brill 22E trams and demonstrates the activities of the SEC Geelong office.Drawing - blueprint, titled "Brake rigging dropped centre double bogie tram Brill maximum traction truck 22E, Trams Nos. 31,""D1775" in ink on top sheet right hand corner.brill 22e, drawings, brake rigging, geelong

Drawing detailing the brake rigging, dimensions, equations and forces for a Brill 22E Maximum Traction Truck. Prepared by the Geelong office of the SECV 1949, signed by Mr Hornabrook. See also item 9025. Yields information about Brill 22E brake rigging and equipment.Digital image of a drawing.tramcars, brill 22e, brakes, brake rigging, geelong

Set of three drawings related to the Brill 22E Maximum Traction trucks: 1 - "Brake Rigging Brill Maximum Traction Truct No. 22E" - showing the dimensions of the levers and pivot points. For the relevant Geelong drawing T1647 see item 8044 and 9025. 2 - "Standard Pony Axle" - traced from MMTB drawing R3755 3 - "Pony Axle Box" - traced from MMTB drawing R1112 and dated in ink 28-4-1955Yields information about Brill 22E brake rigging and equipment.Set of three Drawings - dyeline print on plain paper with a brass clip in the top right hand corner.tramcars, brill 22e, pony axles, axles, axle boxes, brake rigging, ballarat, geelong, drawings
