Shows the type of trolley pole base that was used on W, Z, and some A class trams prior to replacement by pantographs.Shows a MMTB TRolley pole base used on W class tramcars.Black and White photograph the MMTB Type trolley pole base with lines and markings drawn on it in ink as part of an printed illustration. Second copy does not have marks.trams, tramways, mmtb, trolley poles, trolley pole bases

Photocopy of a cartoon illustration of the failure of the trolley pole base on No. 26 on 13/3/1994 by Michael Parker. Reproduced in the March 1994 issue of Fares Please!, along with an item on the failure of the base. Trolley pole was being turned by Simon Green. See March 1994 issue of Fares Please!trams, tramways, tram failures, trolley poles, cartoons, begonia festival

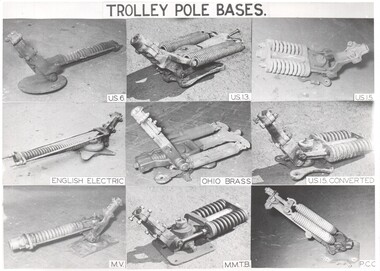

Black and White photograph (montage) of nine type of trolley poles spring bases used by the MMTB, c1970. Provides photos of US6, US13, US15, English Electric, Ohio Brass, US 15 Converted, MV, MMTB and PCC types. Titled "Trolley Pole Bases" 2nd copy added from donation of Geoff Warburton 7/10/17. 3rd copy added 11/6/2022 from unknown source2nd copy in pencil on top edge "Trolley pole bases MMTB"trams, tramways, mmtb, trolley poles, trolley pole bases

Percy Markham Ireland (1893-1976), a tramway rolling stock engineer with the MMTB and a Military engineer applied in 1920 for a patent for a "Trolley Pole safety appliance for electric trams and the like". He was successful in gaining a patent in a number of countries including the UK, France, Germany, Canada, the USA, and New Zealand. The associated documents show the differences in making patent applications in various countries. From research undertaken by the Museum it appears that while his patent applications were successful, his invention was never actually implemented on tramcars in Melbourne". Collected by Noelle Jones as research for an article in the March 2023 issue of the Museum's magazine Bellcord, giving details of Mr Ireland's tramway and military career. He retired as the MMTB Rolling Stock Engineer in 1958 after 44 years of service.Yields information about patents applied for by Percy Ireland in different countries.Set of digital patent documents for Australia, USA, UK, France, Germany and Canada. tramways, patents, trolley poles, percy ireland, safety devices

Black and White photograph of a Ohio Brass Trolley Pole Base. Photo by MMTB and used in the group of trolley pole base photographs - See Reg Item - 304.trams, tramways, mmtb, trolley poles, trolley pole bases

Black and White photograph of a PCC Type Trolley Pole Base. Photo by MMTB and used in the group of trolley pole base photographs - See Reg Item - 304.trams, tramways, mmtb, trolley poles, trolley pole bases, pcc

Used by the Forrest City Signal system to initiate or cancel a signal indication. The trolley wheel would make contact with the steel strips which would send an electrical impulse to the control box that either would enable the signal to be shown or cancelled. There was one on the trolley wire at either end of the section. See reference for further details.Demonstrates part of the Forest City Signal system.Signal contactor mechanism comprising two brass ears, a section of copper trolley wire, two steel strips assembled onto a section of wood fitted with steel covers where the ears are fitted through. Item refurbished for display purposes by Depot staff 2023.forest city signals, tramways, overhead

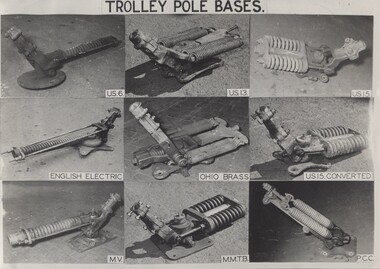

Black and White photograph (montage) of nine type of trolley poles spring bases used by the MMTB, c1970. Provides photos of US6, US13, US15, English Electric, Ohio Brass, US 15 Converted, MV, MMTB and PCC types. Titled "Trolley Pole Bases"trams, tramways, mmtb, trolley poles, trolley pole bases

Photograph shows W class 259 partially dismantled on an outside track. Head light, trolley poles, side blinds and barriers, and drop-centre seating have been removed. Yields information about disposal of W2 class tramcars. Black and white photograph with ink stamp and number on rearInk stamp reads "Melbourne & Metropolitan Tramways Board, Ref No. P25/1/1034" w2 clss, tram 259, headlight, trolley pole, side blind, barrier, drop-centre

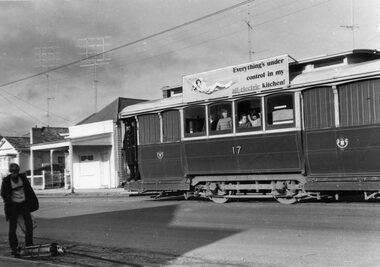

Yields information about incidents of an unusual nature that can happen on an operating tramway - the loss of the trolley pole apparatus. The tram is awaiting recovery.Black and White copy photograph of a newspaper photograph taken by The Courier - photo taken 2/08/1971, published 3/08/1971 of No. 17 with broken trolley pole, Barkly St. Has a crewman looking out the door, some children looking out the window and a lady looking at the trolley pole spring mechanism on the ground. The tram has an "Everything's under control in my all-electric kitchen!" roof advertisement. Collected by Alan Bradley from the Ballarat Courier early 1980's. See Excel file "Record of Ballarat Courier Photos SEC era" (Archive Documents) for source of details.tramways, trams, trolley pole bases, barkly st, mt pleasant, accidents, tram 17

Photograph shows a straight sill single truck car with extensive advertising and decoration including exterior light globes and loud speakers fixed to the roof. The un-numbered tram has its trolley pole raised and is located on a depot fan, perhaps at South Melbourne. Yields information about use of advertising on Melbourne trams Black and white photograph with no note on rear. advertising and decoration, loud speakers, trolley pole, depot fan, south melbourne depot

Official M&MTB photograph showing A class 14 on an outside road at South Melbourne Depot in 1925 with trolley pole raised and all canvas blinds up. Built for the Prahran and Malvern Tramways Trust by Duncan and Fraser, Adelaide in 1910-11, new destination boxes were installed in the 1920s and it was then allocated to Footscray Depot along with other A class cars.Yields information about A class trams. Black and white print with no note on rearcanvas blind, trolley pole, a class, tram 14, prahran and malvern tramways trust, south melbourne depot, footscray depot, destination box, duncan and fraser

These two photographs from different angles show T class 180 derailed across both Princes Bridge tracks with trolley pole still raised. T180 was turning from Batman Avenue into Swanston Street and may have been in service as the tram fleet was depleted in these years and some older cars were pressed into service. Also depicted are the tram crew, a policeman, pedestrians and motor vehicles.Yields information about the intersection of Batman Avenue and Swanston Street, T class 180 and trams in the 1960s. Set of two Black and white photographs with no notes. t class, 180, derailed, princes bridge, trolley pole, batman avenue, depleted, tram crew, policeman, swanston st, tramways, trams

Official M&MTB photograph showing T class 182 just arriving at the Russell St and Barkly St, Footscray single track terminus with male and female passengers alighting and others waiting to board. Motor cars are stopped to allow passenger movement, the trolley pole has not yet been reset and the destination blind still reads 'Russell St'. A local shop and private residence are evident in the background. Yields information about T class 182 and Russell St, Footscray terminusBlack and white print with note on rear.In pencil: "M&MT Photograph $20"t class tram, 182, barkly st, footscray, russell st terminus, alighting, trolley pole, destination blind

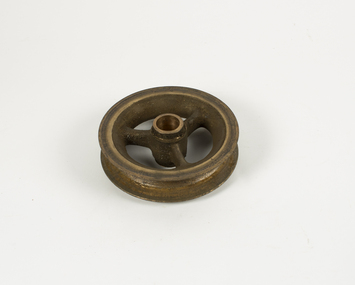

Cast brass, fitted with a cylindrical bush in the centre. Fitted to the end of a trolley pole with another cast item known as a hasp. The wheel runs along the underside of the copper trolley wire, and enables the tram to powered. See item 4809 for a SEC drawing of the item.Demonstrates the mechanism by which the electrical power is transferred from the overhead to the tram itself.Cast brass wheel, with three spokes and hole in the centre for fitting to trolley pole.btm, ballarat tramway museum, trolley wheel

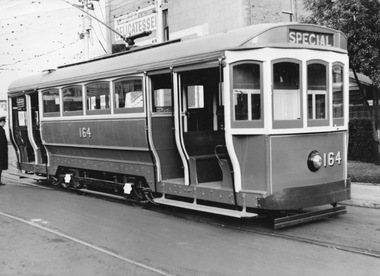

Official M&MTB photograph showing S class 164 in Coldbro Rd at Glenferrie Rd with trolley pole raised and all canvas blinds up. The destination sign reads "Special" and a uniformed crew member in navy blue overcoat and cap stands beside the rear driver's doorway. Built for the Melbourne, Brunswick and Coburg Tramways Trust by Duncan and Fraser, Adelaide in 1916, it is now on display at the Melbourne Tram Museum in HawthornYields information about S class trams. Black and white print with no note on rear. trolley pole, destination box, canvas blinds, s class, 164, coldbro rd, melbourne brunswick and coburg tramways trust, melbourne tram museum, duncan and fraser

Official M&MTB photograph showing F class 47 on an outside road at Malvern Depot in 1925 with original destination box, trolley pole raised and all canvas blinds up. Built for the Prahran and Malvern Tramways Trust by Duncan and Fraser, Adelaide in 1912, it was originally built as a summer car with five doorways each side and a centre aisle. In 1923 it was rebuilt by closing the centre doorways and creating an enclosed saloon, as seen in this photograph.Yields information about F class trams. Black and white print with no note on rear. trolley pole, destination box, canvas blinds, f class, 47, prahran and malvern tramways trust, duncan and fraser

Official M&MTB photograph showing M class 187 on an outside road at South Melbourne Depot in 1925 with trolley pole raised and all canvas blinds up. The new-style destination box reads "City" and the auxiliary board "via Toorak Rd". This car had numerous owners. Built for the Hawthorn Tramways Trust by Duncan and Fraser, Adelaide in 1918, it was then purchased by the Footscray Tramways Trust and moved to Footscray Depot by the M&MTB. It was reallocated to Essendon Depot around 1924 and then South Melbourne Depot before being sold to the SECV and allocated to Bendigo Depot.Yields information about M class trams. Black and white print with no note on rear. Right side of physical print has been cropped to fit on scanner. Second copy has the stamp of C J Frazer on the rear.canvas blind, trolley pole, south melbourne depot, footscray depot, destination box, 187, via toorak rd, hawthorn tramways trust, essendon depot, secv, bendigo depot, m class, duncan and fraser

This night-time photograph shows a side on view of an unnumbered W1 class tramcar covered with hundreds of light globes, including on the raised trolley pole. Much of the drop centre is blocked by a large drop sheet that is also lit and painted with flags. Numerous clusters of flags are placed along the sides of the saloons. Behind the tram is the administration office block at South Melbourne Depot. As tram drivers understand, driving such an illuminated tram that draws so much power from the overhead would not be an easy task. The Duke and Duchess of York visited Australia in 1927 to open the new Parliament House in Canberra. They also visited Melbourne in April that year. They became the King and Queen of Australia in 1936. Yields information about illuminated trams and a royal visit Black and white photograph with note at bottom and on rear.Note at bottom reads: "Illuminated Tram Car" Note on rear is a postcard with place for stamp and correspondence. In biro the message reads: "Duke of Yorks Visit 1927 For Opening of Parliament. Class W1 No. * A L Cushing, East Preston Running Shed"w1 class tramcar, light globes, trolley pole, flags, administration office block, south melbourne depot, duke and duchess of york, 1927, parliament house, king and queen of australia

Colour slide, Kodak, white cardboard of trams W5 725 (North Balwyn) and W2 408 (Spencer St), both route 48 at the intersection of Church St, Burwood Road and Bridge Road Hawthorn with the driver? of 725 getting on the roof to retrieve a trolley pole (with wheel) that cant be positioned because of the overhead span wire. Note the street light behind the tram. 725 has an advert for Penfolds Wine. Slide dated 14-6-60. See Reg Items 4361 for the Chairman Robert Risson on the roof of a tram and 3973 for a related newspaper cutting following the death of a driver.Hand writing on rear in ink "14-6-60 - Retrieving a trolley pole Church St Hawthorn."trams, tramways, route 48, north balwyn, trolley poles, church st, burwood rd, w2 class, w5 class, tram 725, tram 408

Official M&MTB photograph showing X1 class tram No. 462 at the Footscray Station stop No. 60 with the destination blind showing 'Ballarat Rd'. The trolley pole is set for this trip and several passengers are seated inside. On the roadway adjacent to the open front door stand a uniformed driver and conductress in conversation. As the short Footscray routes were usually driver-only operations and the Footscray Station stop was the busiest, the conductress is likely stationed here to collect fares before each tram's arrival and departure. In the background are a fish and chip shop displaying an advertisement for Savoy Peanuts on its double storey facade and a radio and television sales shop. Span and trolley wires can be seen behind the tram curving into Irving St as part of the southern route to Williamstown Rd route. Yields information about X1 class 462 and Footscray Station stop corner Leeds and Irving StreetsBlack and white print with note on rear.In pencil: "M&MT Car Footscray $5"trolley pole, destination blind, x1 class, 462, ballarat rd, driver only, conductress, savoy peanuts, television, williamstown rd, footscray station, busiest stop

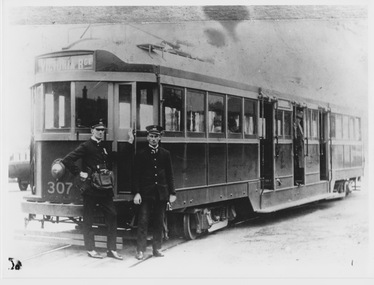

Photograph shows W class 307 standing on slightly curved track displaying destination "Victoria Bridge" and no route number box attached. The uniformed motorman and conductor stand on the roadway next to the front driver's cab where the trolley pole has been tied down. The conductor wears his coin bag and the driver is holding the tram's key and air brake handle. An elderly male passenger with coat stands at the drop-centre doorway and other passengers are inside. The car body of W 307 was built by Holden Motor Body Builders in South Australia in 1924 as part of a large contract to build W class trams. Victoria Bridge was the termini of both the Collins Street and Victoria Parade cable tram that closed in 1929 and the Mont Albert electric tram from Union Road, via Whitehorse Road and Kew Junction. Perhaps this photograph is of the Mont Albert terminus although the curved track suggests otherwise.Yields information about early W class tramcars . Black and white photograph with penciled dates on rearPencil writing reads "Between 2/9/24 & 19/3/28" trolley pole, drop-centre, w class, tram 307, victoria bridge, route number box, key, air brake handle, car body, holden motor body builders, mont albert, termini

A black plastic folder containing a set of 38 General Electric Data Sheets for MMTB and tramway trust equipment, dated July 8 1924. Contained in folder with flexible clips. Pages have been punched with four holes. Copy of document made for BTM Feb 1998 by Doug Prosser. For scan of list - see btm780sheet.pdf General Electric Data for Car Equipment Maintenance Contents For scan see btm780d1 (5 pages) Title sheet Data contents summary sheet showing manual prepared for Melbourne & Metropolitan Tramways Board Including Footscray Tramway Trust Hawthorne Tramways Trust Melbourne, Brunswick and Coburg Tramway Trust Prahran and Malvern Tramways Trust. 2 sheets dated July 8, 1924 giving equipment schedules for the various operators, and diagrams. - hard to read the background sheet information. Does not reference the tramcars. For scan see btm780d2 (54 sheets - items 1 to 27) 1. Methods of Removing the Armature from Box Frame Railway Motors Dated 9/1924, 7 pages 2. Instructions for order Magnet Frames for Railways and Mine Haulage Motors 2 pages, not dated 3 Winter Covers for Ventilated Railway Motors - 2 pages 4 Better Commutation for Railway Motors - 1 page 5 Commutator Grooving Machines - 1 page 6 Railway Motor Armature Coils - 2 pages 7 Carbon Brushes for Railway motors - including brush pressure adjustment - 2 pages 8 Renewable Carbon-Way Brush holders for Railway Motors - 2 pages 9 Commutator Grooving Machines (2nd version) - 2 pages 10 The Repair of Railway Motor Commutators - 3 pages 11 Dimensions of Electrical Apparatus used with 600-volv Type PC railway control equipment, (Sheet 15380, dated 2/1/1924) - 1 sheet including · US-13-E Trolley Base, · MS-118-A main switch, · MA-13-F Fuse Box, · MD3 - lightning Arrester, · BJ-386-B Distributing Box, · Type BG Railway Resistors. 12 Connections of Type KM-63-BR Railway Controllers and Equipment - Drawing 15257, 1 page, dated 1/3/1921 with dimension details on rear of type K-63-BR railway controller equipment including: · SG Resister, · BK-13-A Insulator, · MR11 - Circuit breaker, · MD3 - Lightning Arrester box, · K63-BR Controller, · US15C Trolley Base. 13 Method of Supporting Railway Resistors using Porcelain Bolt insulators for 600 and 1500 Volt Work. Drawing dated 1/11/1923, No. 15249B - 1 page 14 Dimensions of Electrical Apparatus used with 600-volv Type M railway control equipment, (Sheet 15381, dated 2/1/1924) - 1 sheet including · US-13-E Trolley Base, · MS-118-A main switch, · MA-13-F Fuse Box, · MD3 - lightning Arrester, · BJ-386-B Distributing Box, · Type BG Railway Resistors. 15 Dimensions of Electrical Apparatus used with 600Volt, Type PC Railway Control Equipment. Drawing No. 15382, dated 2/1/1924. Includes: · C129-A Master Controller, · DA82C Coupler sockets, · MS-14-G switch, · MS-46-H switch. 16 Dimensions of Electrical Apparatus used with 600-volv Type M railway control equipment, (Sheet 15383, dated 2/1/1924) - 1 sheet including · C-169-A Controller · DA-69-B Coupler Socket and DC-66-C Coupler Plug · MS-14-G Switch · MS-46-H-Switch 17 Method of Making Tap Connections for Car Cables -= SD 15468, 1/11/1924, 1 page 18 The Repair of 600 Volt Railway Motor Armatures, 64408, 9/2/1924, 4 pages 19 Proper Method of Mounting and Dismounting Railway Motor Pinions. - 2 pages 20 Pinion Pullers for Railway Motors - 2 pages, dated 8/1/1924. 21 The Care of Railway Motor Bearings - 4 pages 22 Oil Scraper Rings for Air Compressors - 64590 - May 1924 - 1 page 23 Finger Bases for type K 63 controller 1 page 24 Adjustment of Drum Controller fingers - 29/1/1924, 64600A - 1 page 25 Star Wheels for Type K Controllers - 64603 - 1 page 26 Soldering Aluminium Controller Cylinder Castings - 2 pages 27 Porcelain Bolt Insulators for Railway Service - and drawing on rear showing mounting arrangement of resistor Grids - 2 pages. For scan see btm780d3 (13 pages) 28 Connections of Armature and Field Winding for GE-201-F and GE 263A railway motors. DS37869 29 Connections of Armature and Field Winding for GE-201-I railway motors. K1629303 30 Connections of Armature and Field Winding for GE-202 motor, DS 10472 31 Connections of Armature and Field Winding for GE-203 A and GE 226 railway motors. DS23869. 32 Connections of Armature and Field Winding for GE-241 motors - K1629077 33 Connections of Armature and Field Winding for CP25A Air compressor 34 Connections of Armature and Field Winding for CP27A Air compressor 35 Connections of Armature and Field Winding for GE-258 and GE 264 railway motors. K1629343. 36A- Dimensions of Type K-63-BR Railway Controller Equipment 36 US-13-E Trolley Base for Railway Service - 3/1/1923, 64823 - 2 pages 37 Copy of M&MTB (Eastern System) Certificate of Competency as Motorman. 38 Photocopies of a series of four photos of 22E trucks under an SEC tramcar. For scan see btm780d4 (40 pages) 39 Sprague G-E Multiple Unit Control, Type PC, Instruction Book 84772 - Oct. 1922 - 40 Pages. Images of sheets added 2-11-15 trams, tramways, general electric, motors, controllers, trolley pole bases

Set of two Colour slides Kodak, white cardboard of trams: .1 - an SW6 (route 42) car descending the Barkers Road hill through the cutting towards Victoria Bridge over the Yarra river, Has the Vickers Ruwolt factor in the background and the city skyline. .2 - SW6 893 (City Route 42), crossing the Victoria Bridge after leaving the Barkers Road cutting. Shows the overhead support structure on the bridge. Slide datedHand writing on rear in ink "14-6-60 - Retrieving a trolley pole Church St Hawthorn."trams, tramways, route 42, barkers road, sw6 class, bridges, victoria bridge, tram 893

Black and white photo of a H crossing overhead that suits both trolley poles and pantographs..1 - On the rear in ink - "Newly hung o/head crossing suits panto's and poles"trams, tramways, overhead, mmtb, trolley poles, pantographs

Yields information about the appearance of Bendigo Birney trams early 1970's en route to North Bendigo and its tree lined streets.Black and White Photograph of SEC Bendigo 30, Birney at North Bendigo terminus with the driver turning the trolley pole. Tram has the destination of Golden Square. Photo shows the fitting in the overhead to help locate the trolley pole on the inbound wire. Photo Chris Wurr, early 1970's. "Photo by Chris Wurr" stamped on the rear.trams, tramways, bendigo, north bendigo, overhead, birney, tram 30

Label on rear advises made from Australian timber by George Kob. Item has been labelled for the Box Hill Institute of TAFE. Given the route number, made prior the extension of Route 42 to Box Hill which took place in 2003.Demonstrates model making.Wood model with wire handrails, one trolley pole and light string trolley pole ropes. Painted green, cream with a stone roof colour. Has route number of 42 and one destination "Box Hill". Has on the base details of the maker and that it was presented by Box Hill Institute of TAFE.models, box hill, w2 class, george kob

Official Metropolitan Transit Photograph of A class No. 233. Taken at Preston workshops. Tram fitted with trolley poles. Taken c1990.On rear in pencil "A class"melbourne, metropolitan transit, a class, tram 233

Yields information about the appearance of one of Geelong trams early 1950's with a little information about the background.Black and white photograph of Geelong No. 10 at the East Terminus, with the destination of Chilwell. Note the trolley pan above the trolley pole.On rear in ink "SEC Geelong #10@ ? East" and "W. John Webster".tramways, trams, geelong, east, trolley wire, trolley wheels, tram 10

Set of five circulars about Trolley Poles and their use on trams: 1 - Emergency Trolley Rope - fitting to trams - foolscap dated 25/10/1963 2 - trolley poles and climbing onto the roof - quarto dated 17/12/1963 3 - Procedure for placing front trolley pole in trailing position - foolscap - 20/12/1963 4 - Trolley pole rope guide clip - two foolscap sheets with space for an photo - 11/11/1964 5 - Trolley pole rope guide clip - quarto sheet dated 12/11/1964.Yields information about the use of trolley poles on Melbourne trams.Document - Set of five foolscap or quarto sheets, duplicated, each with two punched holes on left side.tramways, instructions, trolley poles, operations, safety
